WL8A Aluminum Alloy Folding Step Ladder
A lightweight A-frame aluminum step ladder for household, hardware, retail and private-label programs. The WL8A series covers 2, 3, 4 and 5 step sizes with slim 16 cm carton depth and progressive tread widths.
Select Step Count
Specifications update instantlyLoad rating, aluminum profile, certification, MOQ and final packing method must be confirmed before quotation.
Lightweight household structure
Built for Everyday Reach and Easy Handling
WL8A combines a double-sided A-frame, aluminum treads, black corner fittings and folding support arms in one compact household ladder family.
Supplied net weights range from 1.45 kg to 3.5 kg for easier handling and merchandising.
Front and rear rails create a self-supporting structure for common household tasks.
Horizontal tread texture adds grip while the tread width increases with step count.
Black molded corner parts protect tread joints and create a consistent family appearance.
Bolted side linkages stabilize the open geometry and fold for storage and shipping.
2, 3, 4 and 5 step sizes support a coordinated ladder range for B2B buyers.
Procurement data
WL8A Size Specifications
Compare the supplied factory data for all four aluminum folding step ladder configurations.
| Step Count | Finish | Net Weight | Outer Carton | CBM | Listed Load Qty | Top Tread Height | Tread Widths |
|---|---|---|---|---|---|---|---|

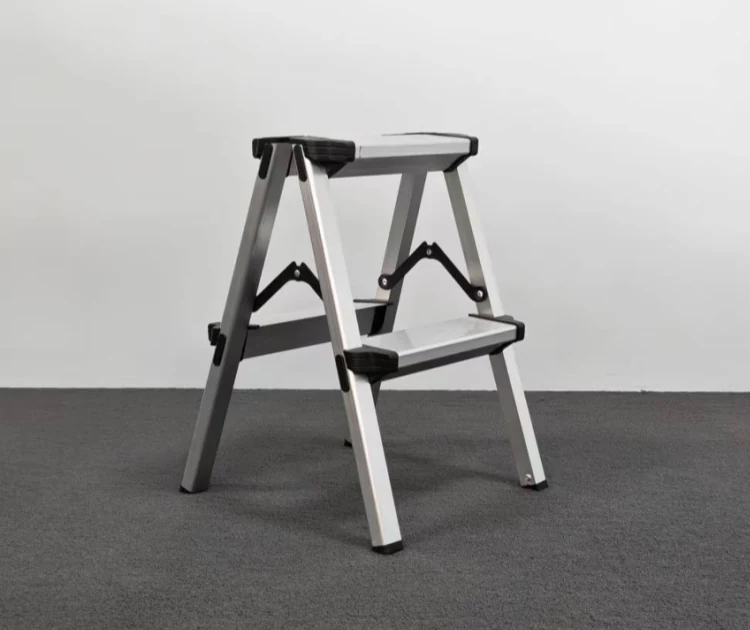

| 2-Step | Aluminum / Black | 1.45 kg | 52 × 36 × 16 cm | 0.029 | 2,276 | 48 cm | 26 / 28 × 8 cm |

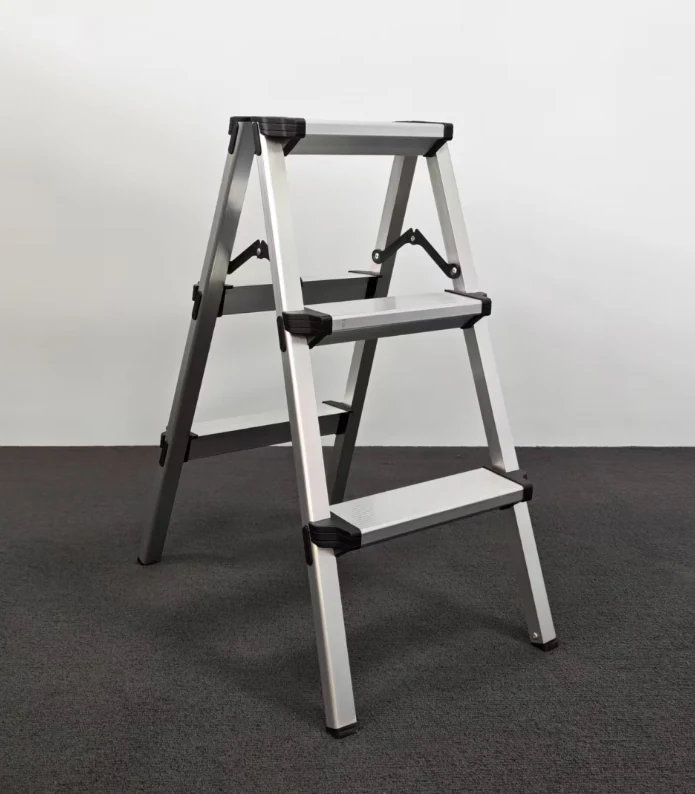

| 3-Step | Aluminum / Black | 2.1 kg | 78 × 39 × 16 cm | 0.048 | 1,375 | 72 cm | 26 / 28 / 30 × 8 cm |

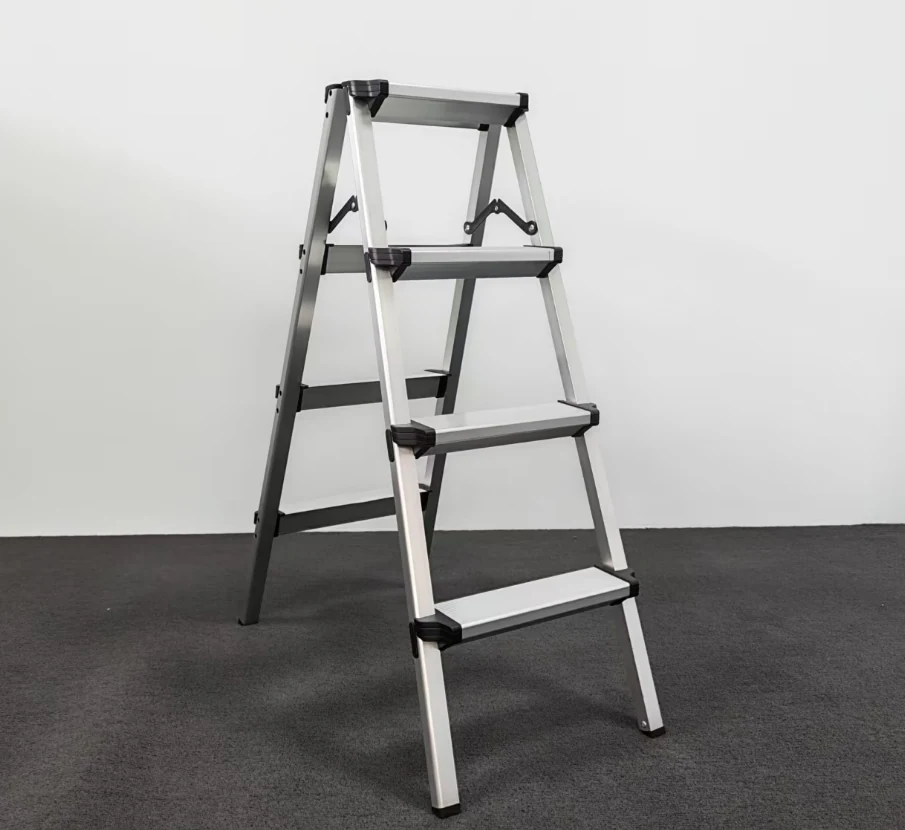

| 4-Step | Aluminum / Black | 2.8 kg | 104 × 41 × 16 cm | 0.068 | 971 | 96 cm | 26 / 28 / 30 / 32 × 8 cm |

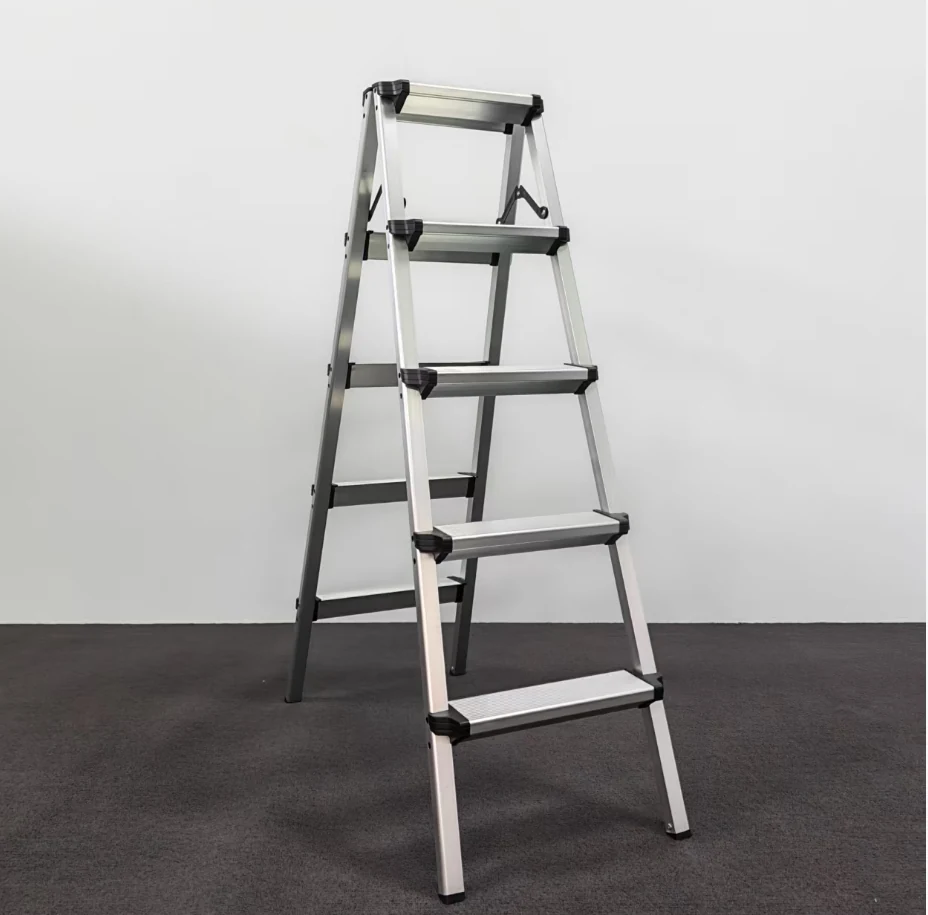

| 5-Step | Aluminum / Black | 3.5 kg | 130 × 43 × 16 cm | 0.089 | 742 | 120 cm | 26 / 28 / 30 / 32 / 34 × 8 cm |
Product range

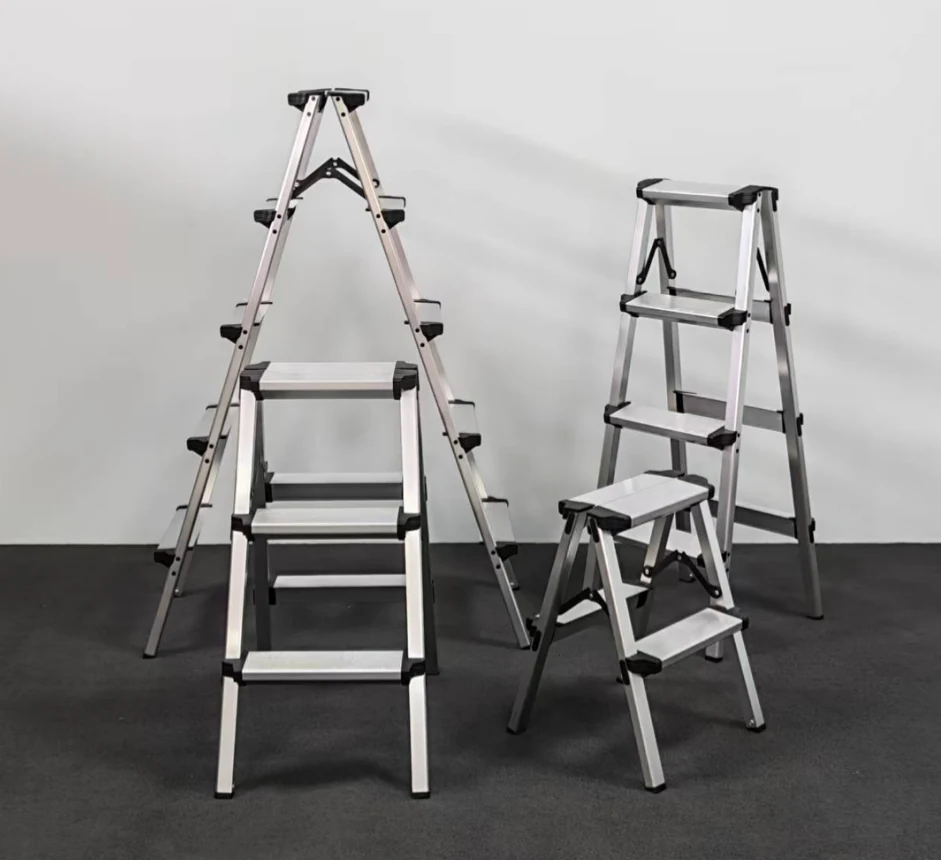

Choose the Right Step Count
Use the household task, target standing height and carton plan to select the most suitable configuration.
Confirm the models, finish reference, labels, manual, barcode, carton artwork and target quantity before sampling.
Packaging & delivery

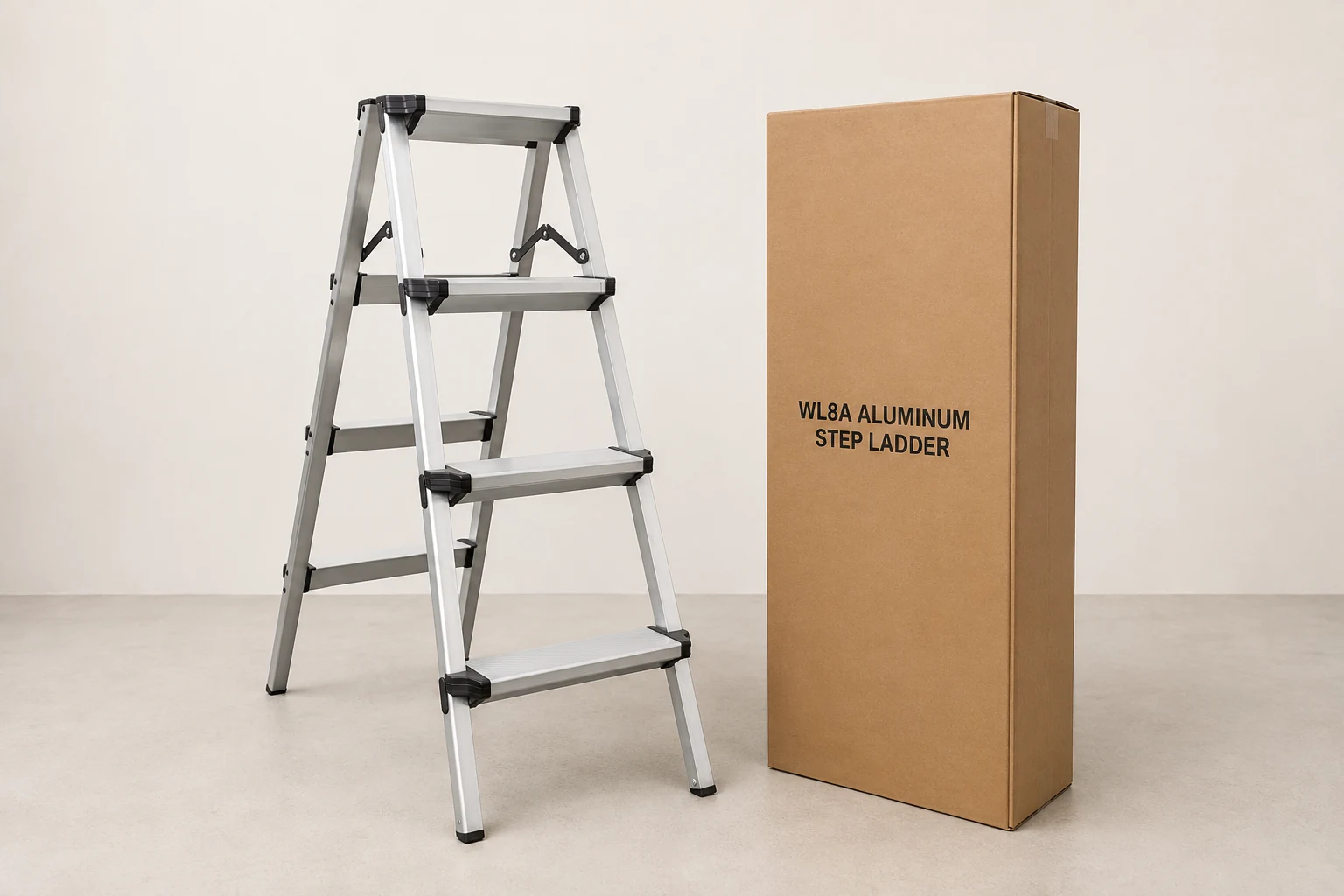

Export Carton Planning
A packaging presentation helps buyers review model marking, private-label artwork and shipping requirements before approval.
One Visual System for a 2–5 Step Program
The supplied table lists a 16 cm carton depth throughout the series, while the carton length and width increase with the selected step count.
- Current carton range52 × 36 × 16 cm to 130 × 43 × 16 cm
- Private-label coordinationLogo, model marking, safety labels, instructions and barcode placement
- Shipment reviewConfirm packing method, inner protection, pallet plan and container basis
This is a presentation visual. Final carton printing, structure and protection details are confirmed against the approved order specification.
Household application

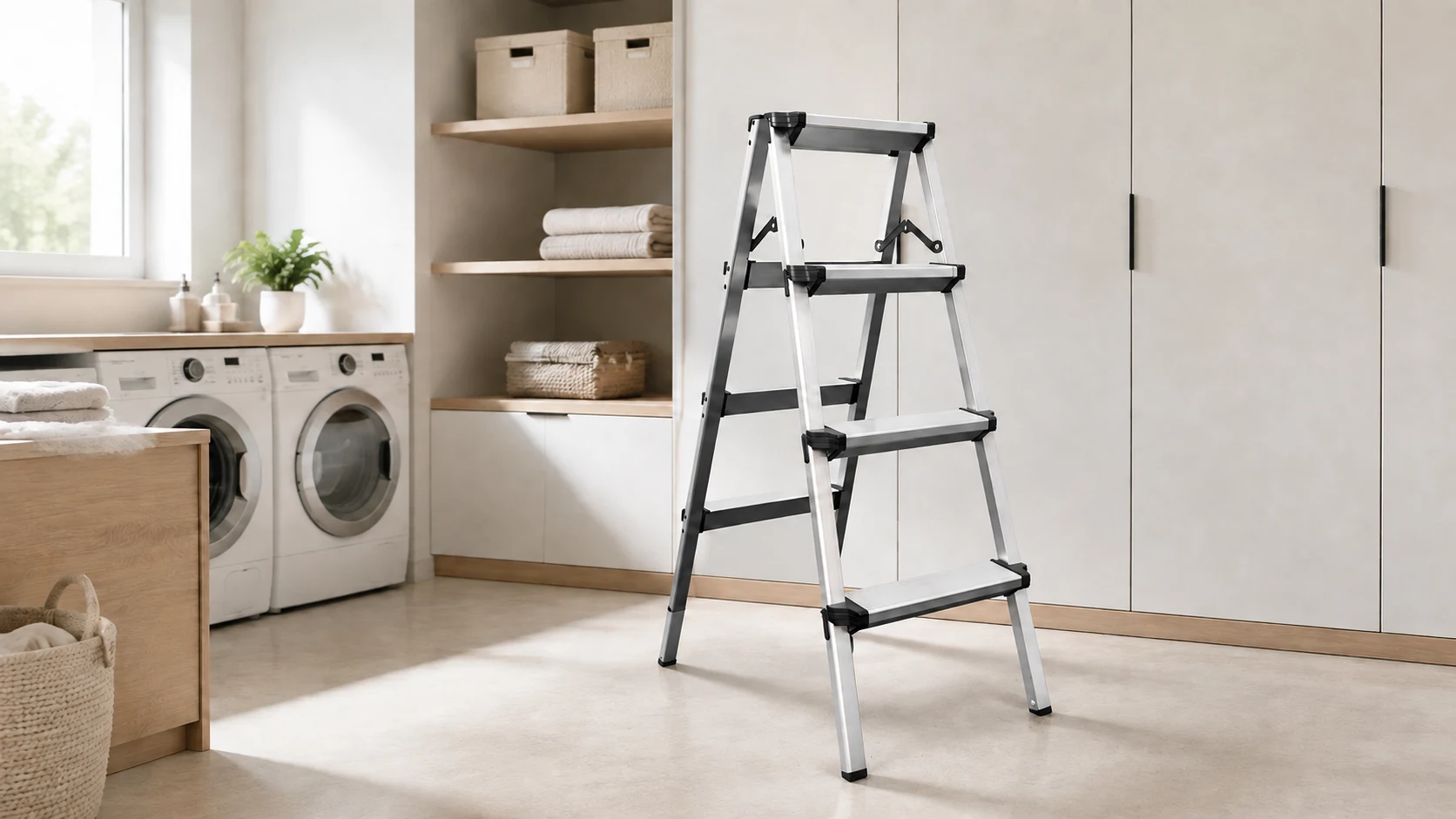

Lightweight Reach for Everyday Storage
From upper shelves and utility rooms to pantry organization, the WL8A aluminum folding step ladder gives household buyers a compact, coordinated 2–5 step family.
HOUSEHOLD STORAGE REACHFor wholesale buyers
Build Your WL8A Program
Share your channel and market requirements so the factory can match step count, labeling and packaging details.
Suggested Channels
- Household hardware and home-improvement distributors
- Supermarket and general-merchandise retail programs
- Kitchen, pantry and utility-room product ranges
- E-commerce and private-label aluminum step ladders
- Mixed-container household ladder sourcing
Details to Confirm
- Required 2-, 3-, 4- or 5-step configuration
- Finish, logo and safety-label requirements
- Required load rating and destination-market standard
- Retail carton, instructions and barcode format
- Sample, production and inspection schedule
Request a WL8A Factory Quotation
Send the step count, target quantity, destination market and packaging details. We will confirm the applicable specifications and commercial terms.
Buyer questions
WL8A Aluminum Step Ladder FAQ
Which WL8A sizes are available?
The supplied WL8A table covers 2-step, 3-step, 4-step and 5-step configurations.
How much does the WL8A ladder weigh?
Listed net weight ranges from 1.45 kg for the 2-step model to 3.5 kg for the 5-step model.
What are the WL8A tread dimensions?
Each tread is listed as 8 cm deep. The tread widths progress by position from 26 cm through 28, 30, 32 and 34 cm on the five-step model.
What is the load capacity?
A verified load-capacity figure was not included in the supplied data, so this page does not publish an unconfirmed number. Confirm the required rating and target standard during quotation.
Is WL8A a folding A-frame ladder?
Yes. The product photos show a self-supporting A-frame structure with folding side linkages for storage and shipment.
Can WL8A be private labeled?
Logo, model marking, safety labels, instructions, barcode and carton artwork can be evaluated against the required quantity and destination market.
