Move to zoom · Click to enlargeProduct photography and measurements are based on the supplied WF30HC materials. Confirm the final production drawing and packing plan before order placement.
WF30HC Compact Folding Step Ladder with Padded Handrail
A slim-folding carbon-steel household ladder with a continuous padded handrail, 30 × 20 cm ribbed treads and top platform, and black or white 2–5 step configurations.
Select Step Count
Specifications update instantlyGross weight, load rating, tube specification, certification, MOQ and final packing construction must be confirmed before quotation.
Compact household structure

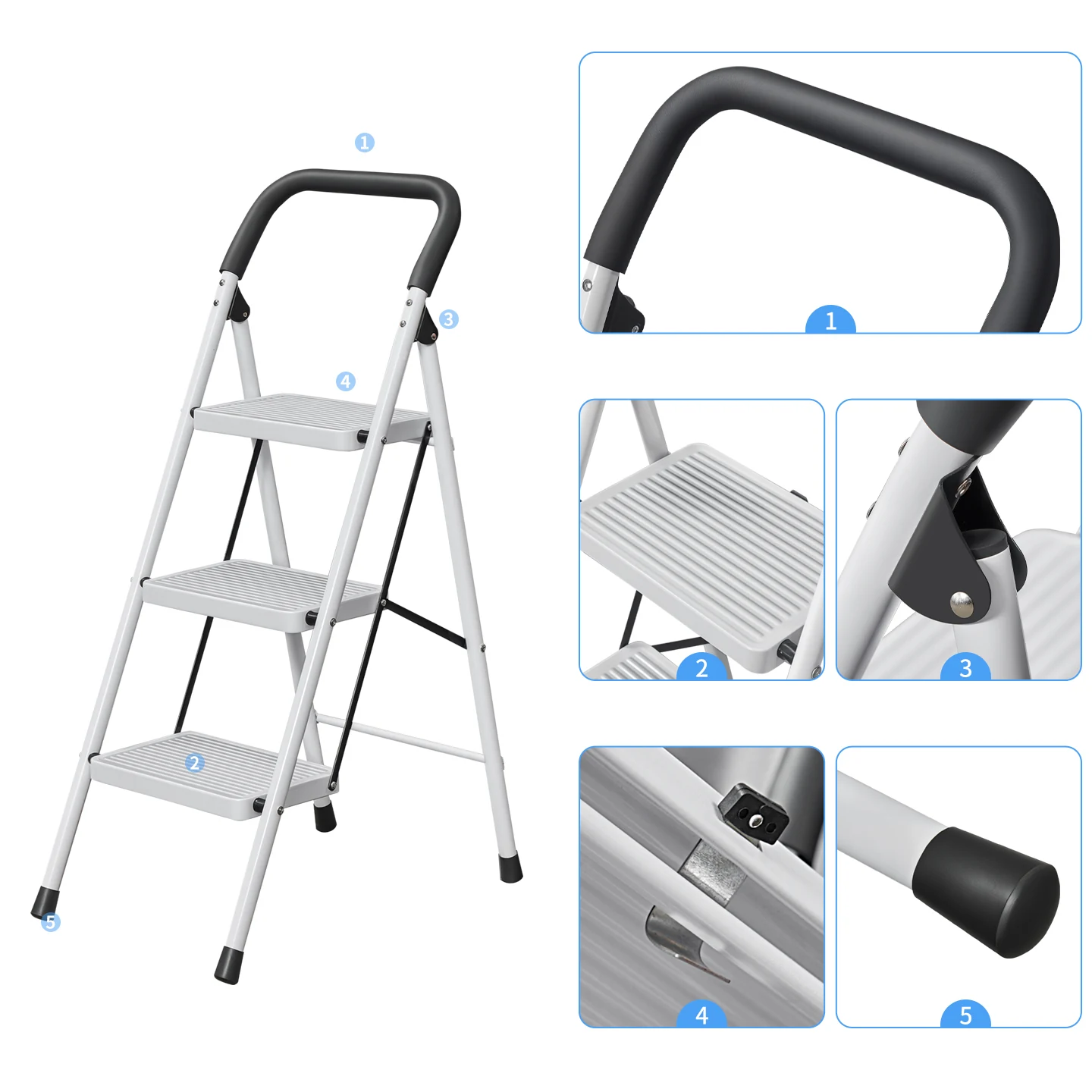

Padded Grip, Ribbed Steps and a Slim Fold
The supplied detail image documents the handrail padding, tread texture, pivot hinge, platform catch and non-slip feet.
A foam-covered top grip provides a comfortable contact point while climbing and standing.
The supplied table lists matching tread and top-platform dimensions across the series.
Side brackets connect the front and rear frame sections beneath the padded handrail.
A metal catch beneath the upper platform supports the folding structure.
Protective black caps finish the four floor contact points.
The model-specific three- and four-step drawings show a 9 cm folded profile.
Procurement data
WF30HC Size Specifications
Compare the supplied factory data for the 2–5 step configurations.
| Step Count | Sample Colors | Net Weight | Outer Carton Size | Folded / Open Height | CBM | Load Qty | Open Depth | Top Platform | Tread Size |
|---|---|---|---|---|---|---|---|---|---|
| 2-Step | Black / White | 3.1 kg | 87 × 40 × 7.5 cm | 86 / 77 cm | 0.026 | 2,538 | 45 cm | 30 × 20 cm | 30 × 20 cm |
| 3-Step | Black / White | 4.2 kg | 123 × 40 × 7.5 cm | 111 / 101 cm | 0.036 | 1,833 | 61 cm | 30 × 20 cm | 30 × 20 cm |
| 4-Step | Black / White | 5.2 kg | 132 × 40 × 7.5 cm | 136 / 125 cm | 0.039 | 1,692 | 77 cm | 30 × 20 cm | 30 × 20 cm |
| 5-Step | Black / White | 6.4 kg | 162 × 40 × 7.5 cm | 161 / 149 cm | 0.048 | 1,375 | 94 cm | 30 × 20 cm | 30 × 20 cm |
Current finish directions

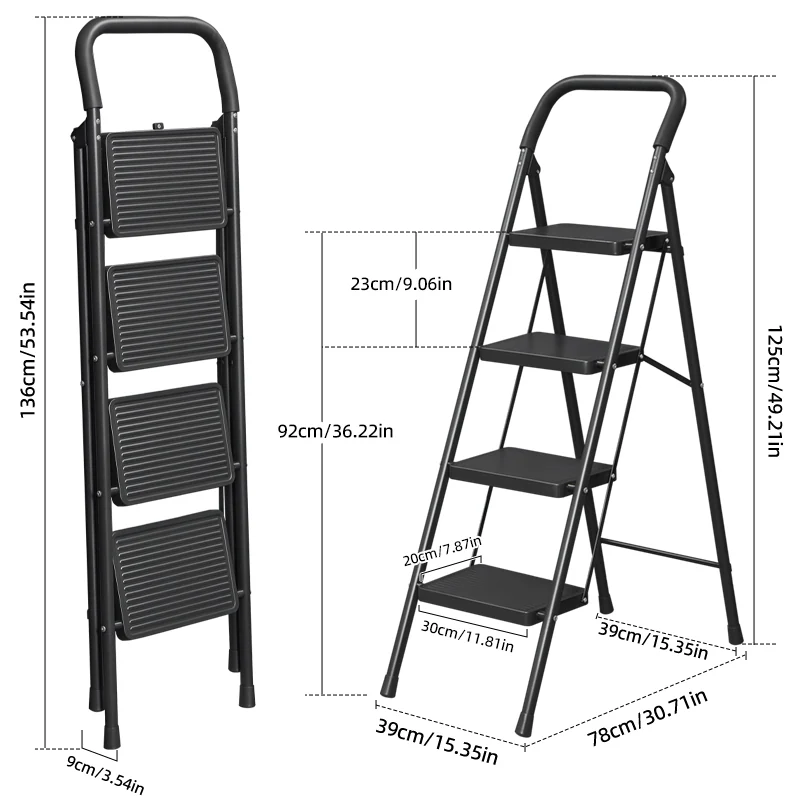

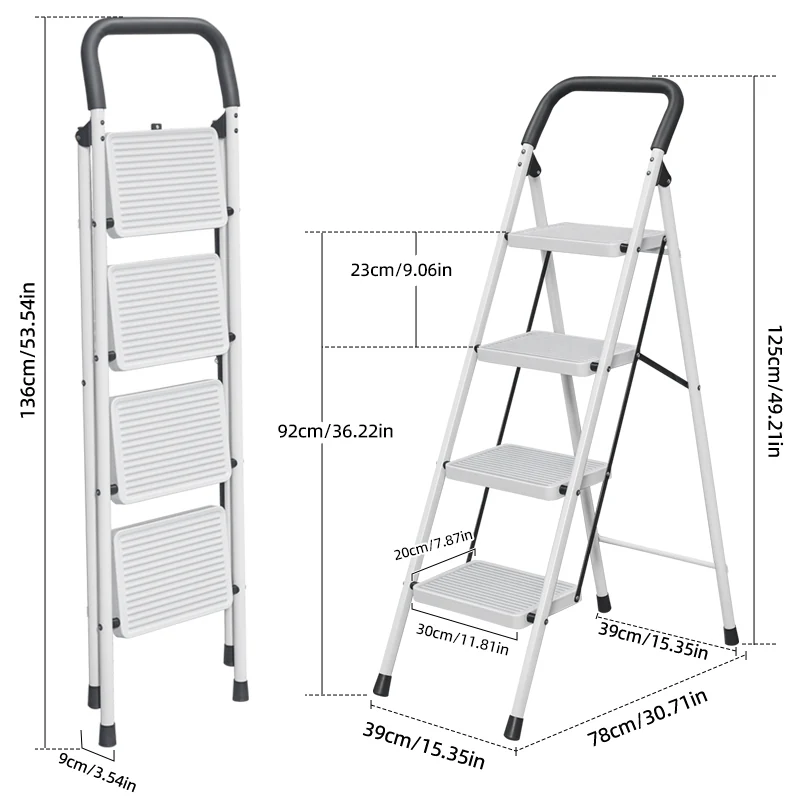

Black and White Four-Step Samples
The supplied SKU images show the same WF30HC four-step structure in two current color directions.
Confirm step count, color reference, target quantity and destination market before sample production.
Dimensions & delivery

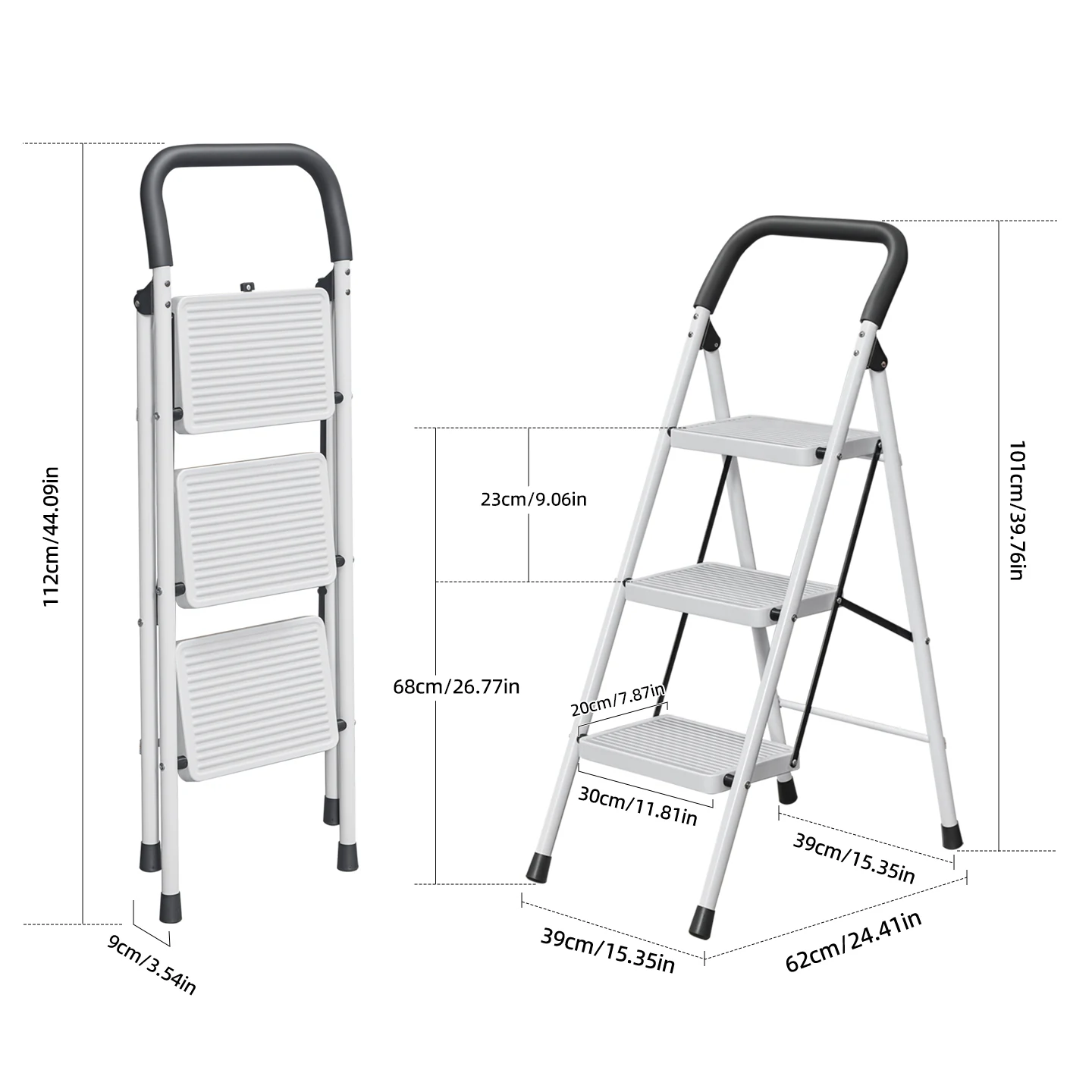

Three-Step Size and Packaging Reference
The supplied three-step drawing and series carton data provide the dimensional basis used below.
101 cm Open / 112 cm Folded Height
The drawing labels a 39 × 62 cm open footprint, 23 cm tread spacing, 68 cm top-platform height and 9 cm folded depth.

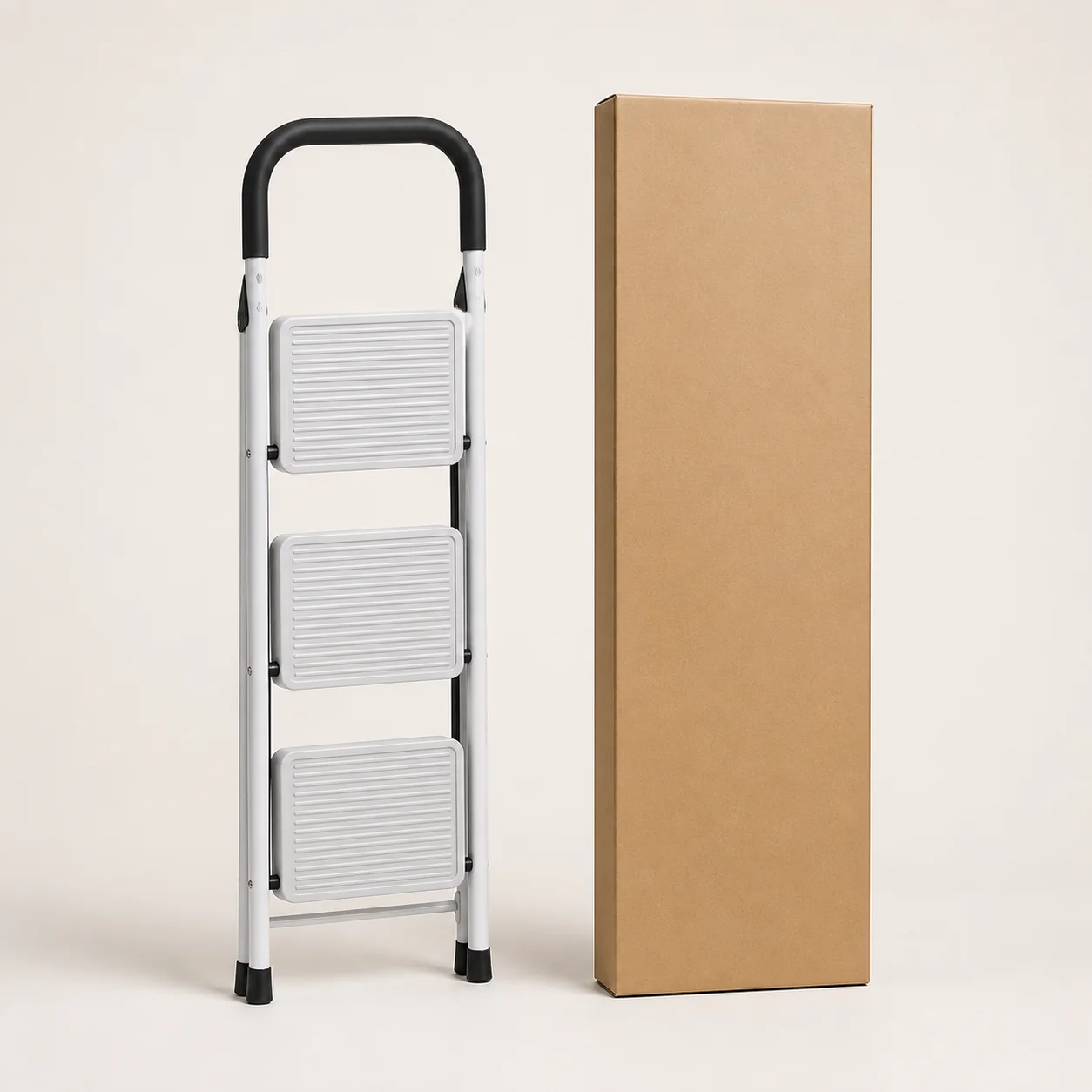

123 × 40 × 7.5 cm Carton
The visual uses the supplied three-step outer-carton dimensions. Final corrugated grade, protective packing, logo artwork and shipping marks are confirmed before production.
PACKAGING REFERENCE · FINAL ARTWORK TO BE CONFIRMED

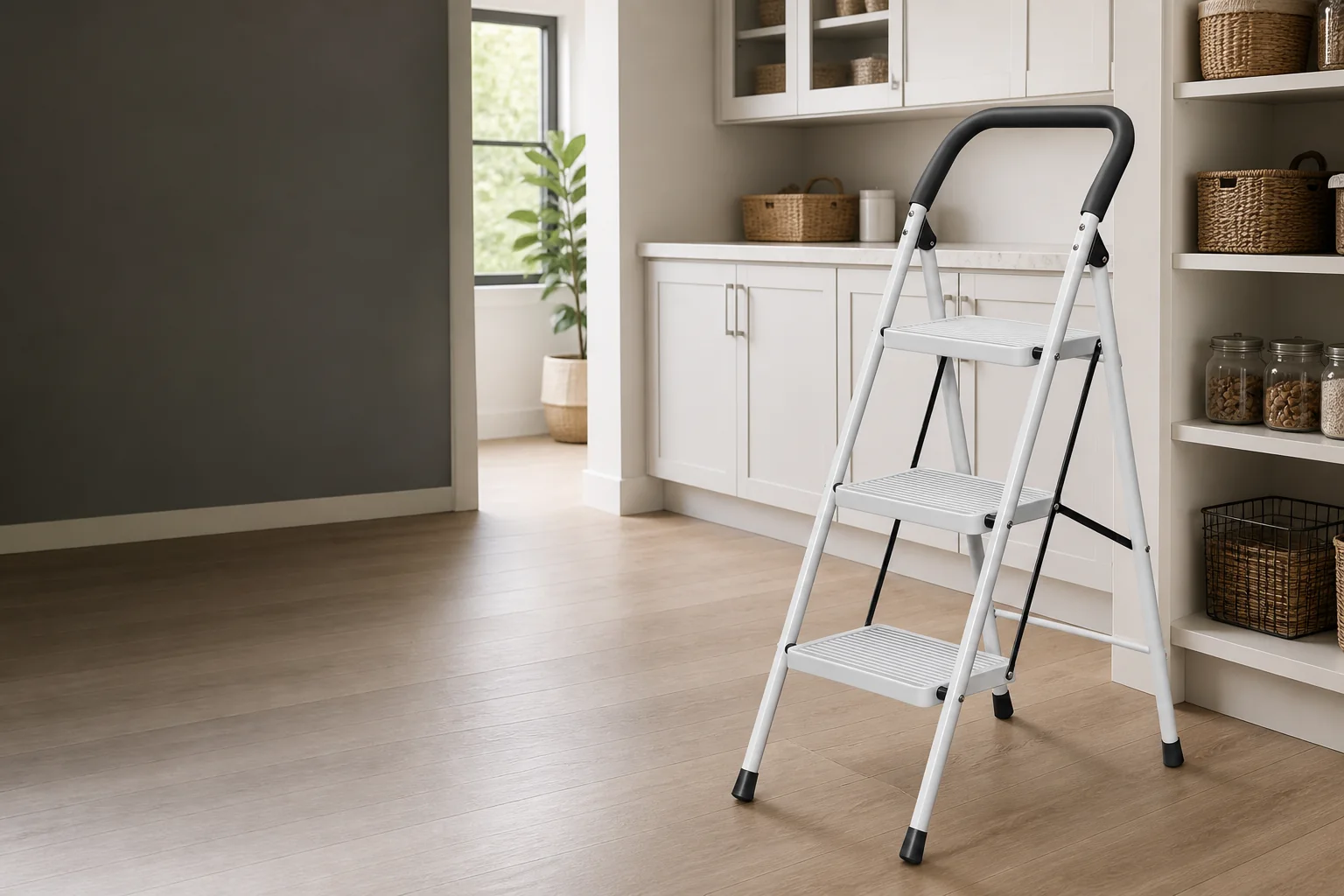

Household application
Comfortable Reach for Everyday Storage
The matching ribbed treads, continuous padded handrail and compact folding frame position WF30HC for kitchen, pantry, utility-room and household retail programs.
For wholesale buyers
Build Your WF30HC Program
Share the target channel so the factory can match step count, finish, labeling and packaging requirements.
Suggested Channels
- Household hardware and home-improvement distributors
- Supermarket and general-merchandise retail programs
- Kitchen, pantry and utility-room product ranges
- Online marketplace and private-label programs
- Mixed-container household ladder sourcing
Details to Confirm
- Required 2-, 3-, 4- or 5-step configuration
- Black, white or project-specific color reference
- Required load rating and destination-market standards
- Retail carton, labels and export-carton requirements
- Sample, production and inspection schedule
Request a WF30HC Factory Quotation
Send the step count, target quantity, destination market, color and packaging details. We will confirm the applicable specifications and commercial terms.
Buyer questions
WF30HC FAQ
Which WF30HC sizes are listed?
The supplied WF30HC table covers 2-, 3-, 4- and 5-step configurations.
Which colors are shown?
The supplied photography shows black and white WF30HC samples.
What are the tread and top-platform sizes?
The supplied table lists 30 × 20 cm for both the regular treads and the top platform.
What is the load capacity?
A verified load-capacity figure was not included in the supplied WF30HC data, so this page does not publish an unconfirmed number.
How compact is WF30HC when folded?
The model-specific three- and four-step drawings show a folded depth of 9 cm.
Can WF30HC be private labeled?
Color, logo, labels and packaging can be evaluated against the required size, quantity and destination market.
