ARK16 Carbon Steel Multi-Function Ladder & Drying Rack
A 4-6 step carbon-steel series that combines household climbing access with a fold-out utility rack for drying garments and organizing lightweight items.
Select Step Configuration
Specifications update instantly
Load rating, target-market certification, MOQ, tube specification, permitted rack load and final packaging construction must be confirmed before quotation.
Multifunction construction
Climb, Extend the Rack, Fold Away

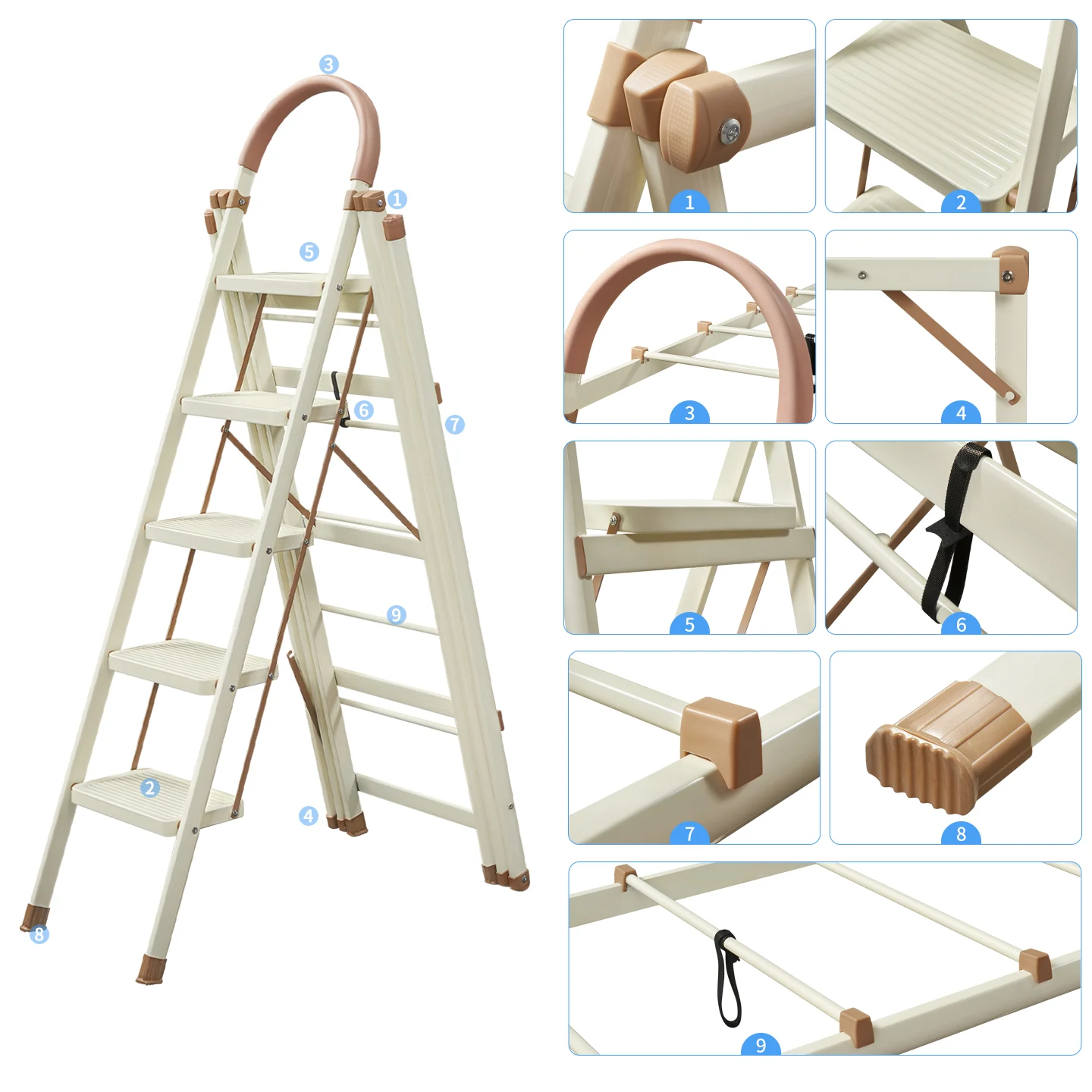

The supplied five-step product shows the complete ARK16 ladder, rack extension and folding system.

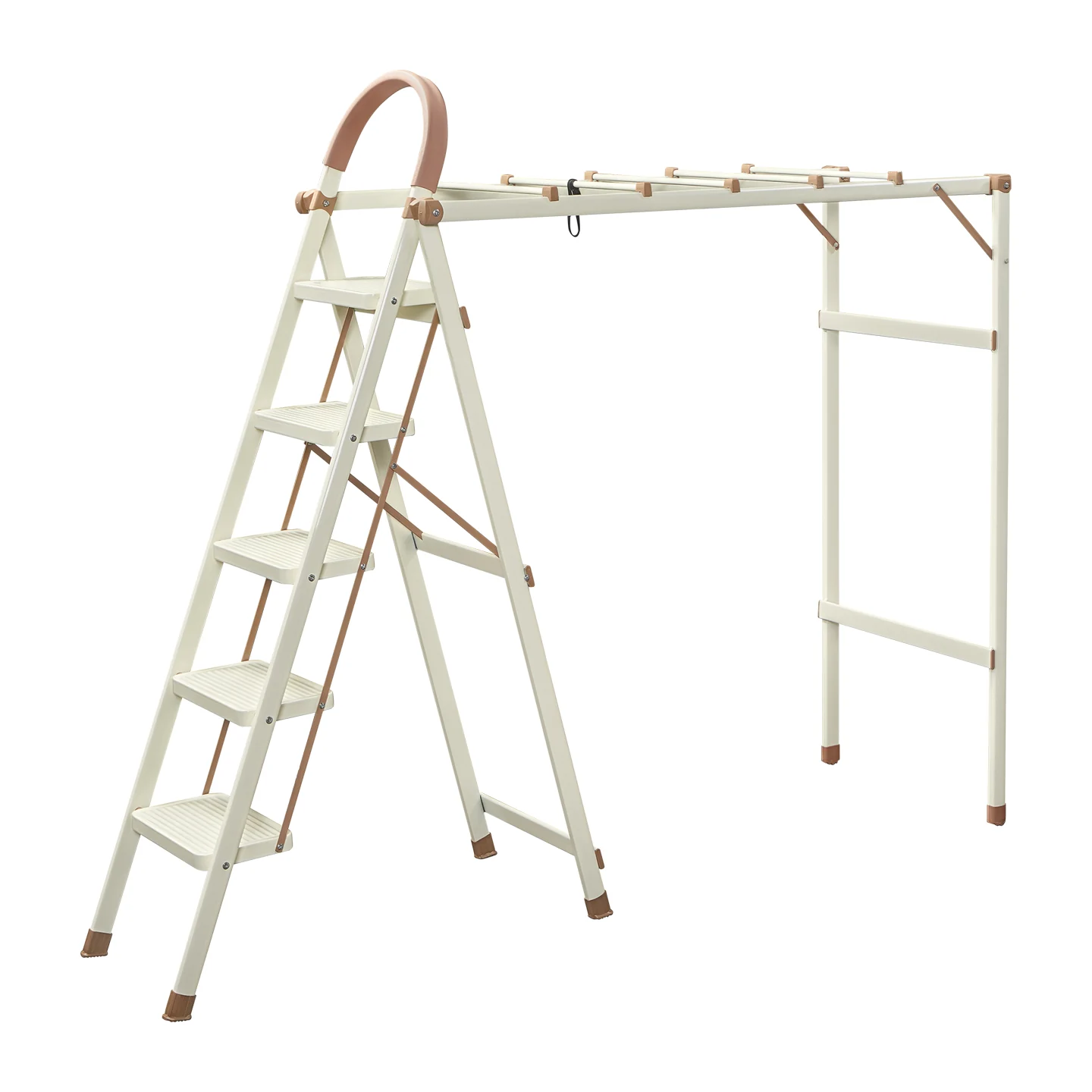

Parallel rack bars extend from the ladder and are supported by a separate folding end frame.
Each climbing step uses a broad ribbed surface with a coordinated powder-coated finish.
A padded curved grip provides a defined hand-contact area above the top platform.

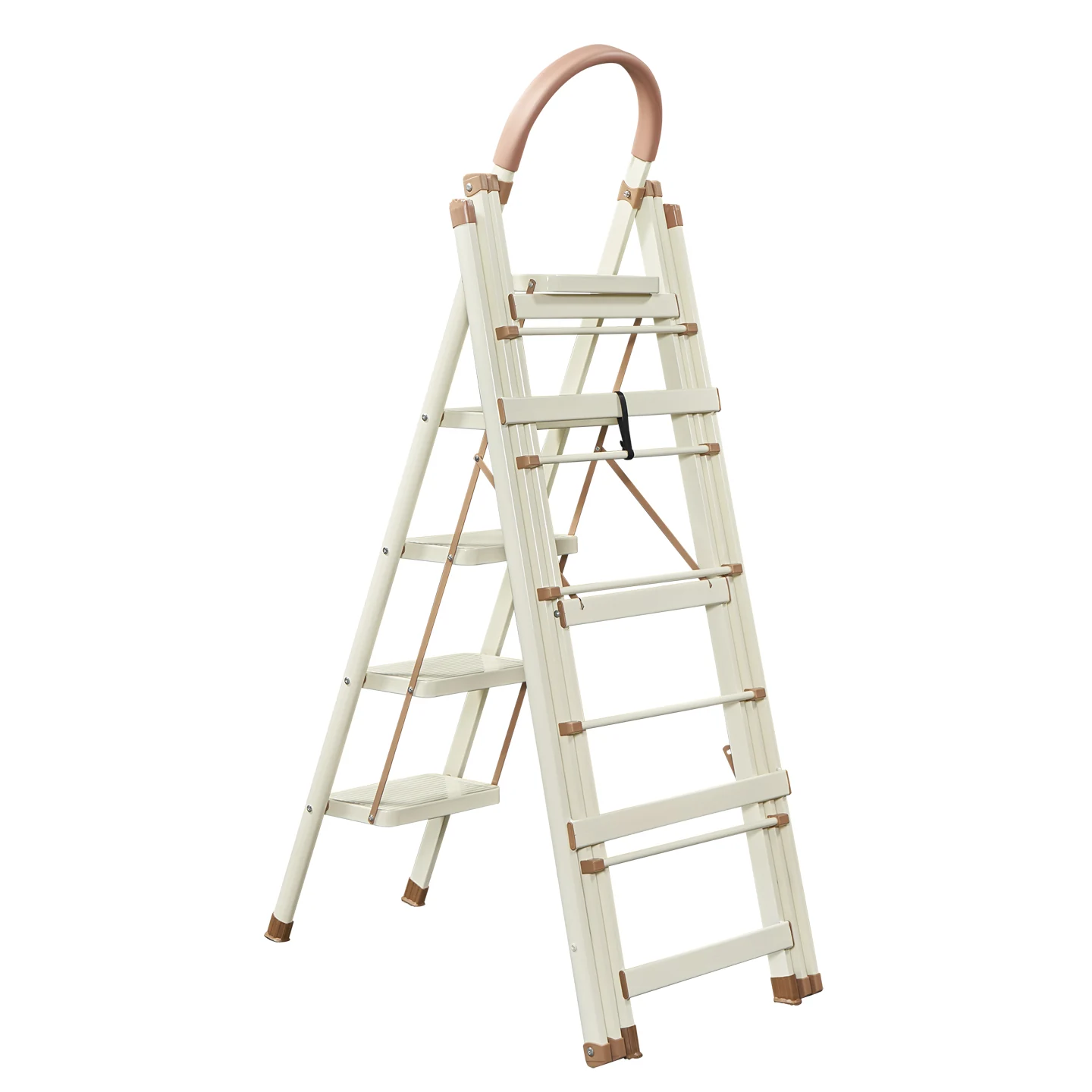

Fastened hinge housings connect the front ladder, rear supports and integrated rack.
Side braces and a securing strap help organize the structure during use and storage.
Coordinated polymer contact points finish the rails and support the product on the floor.
Procurement data
ARK16 Series Specifications
Compare weight, carton size, shipping volume and working heights across the 4-6 step range.
| Configuration | Current Colors | Net Weight | Gross Weight | Carton Size | CBM | Load Qty | Folded / Open Height | Top Platform | Rack Height / Length |
|---|---|---|---|---|---|---|---|---|---|
| 4 Step | Red / Black / Ivory | 6.5 kg | 7.4 kg | 135 × 53.5 × 6.5 cm | 0.047 | 1404 | 133 / 124 cm | 88 cm | 104-106 cm |
| 5 Step | Red / Black / Ivory | 7.9 kg | 8.9 kg | 158 × 53.5 × 6.5 cm | 0.056 | 1179 | 156 / 146 cm | 111 cm | 124-130 cm |
| 6 Step | Red / Black / Ivory | 9 kg | 10.1 kg | 180 × 53.5 × 6.5 cm | 0.062 | 1065 | 179 / 168 cm | 132 cm | 149-152 cm |
Current color samples
Folded & Expanded in Every Finish

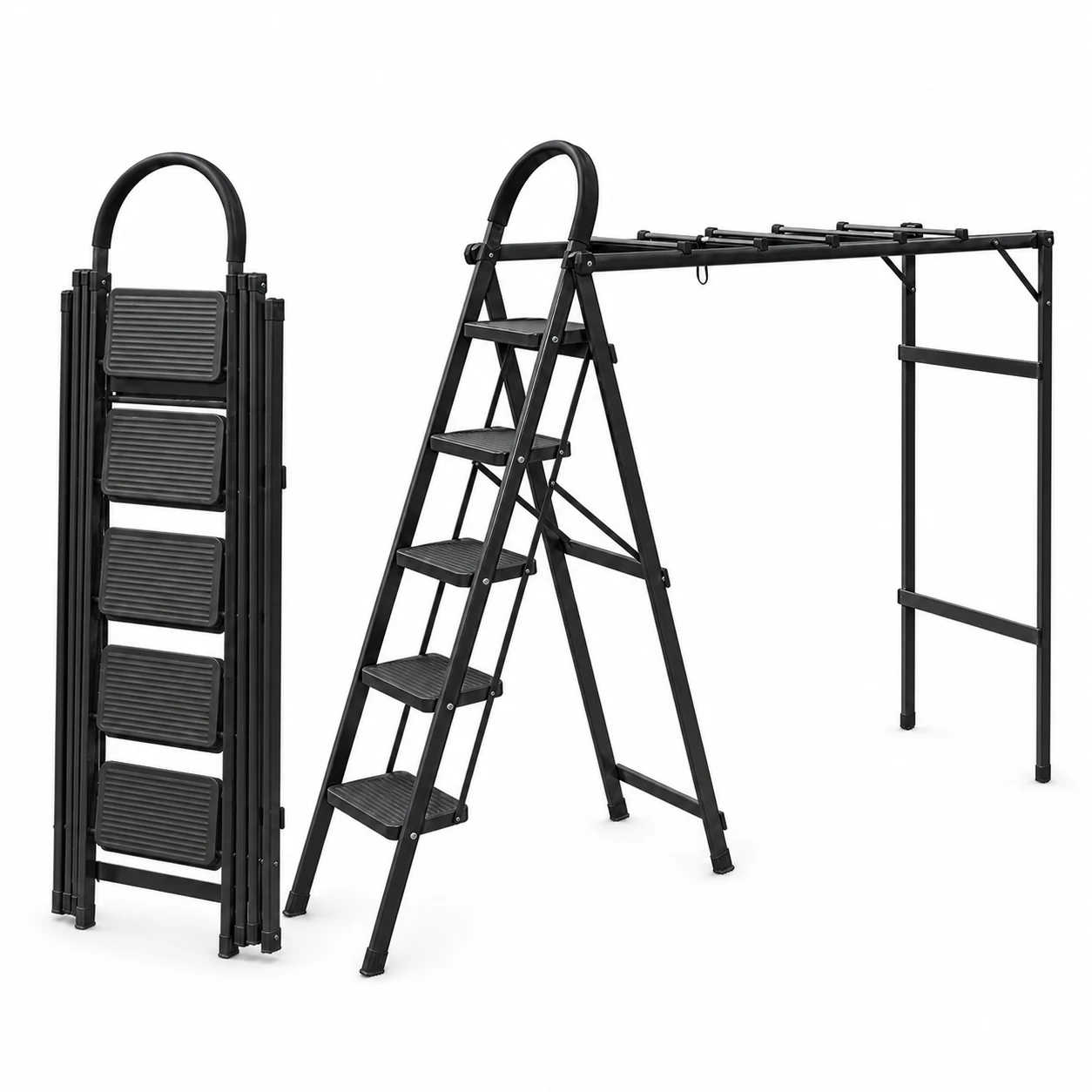

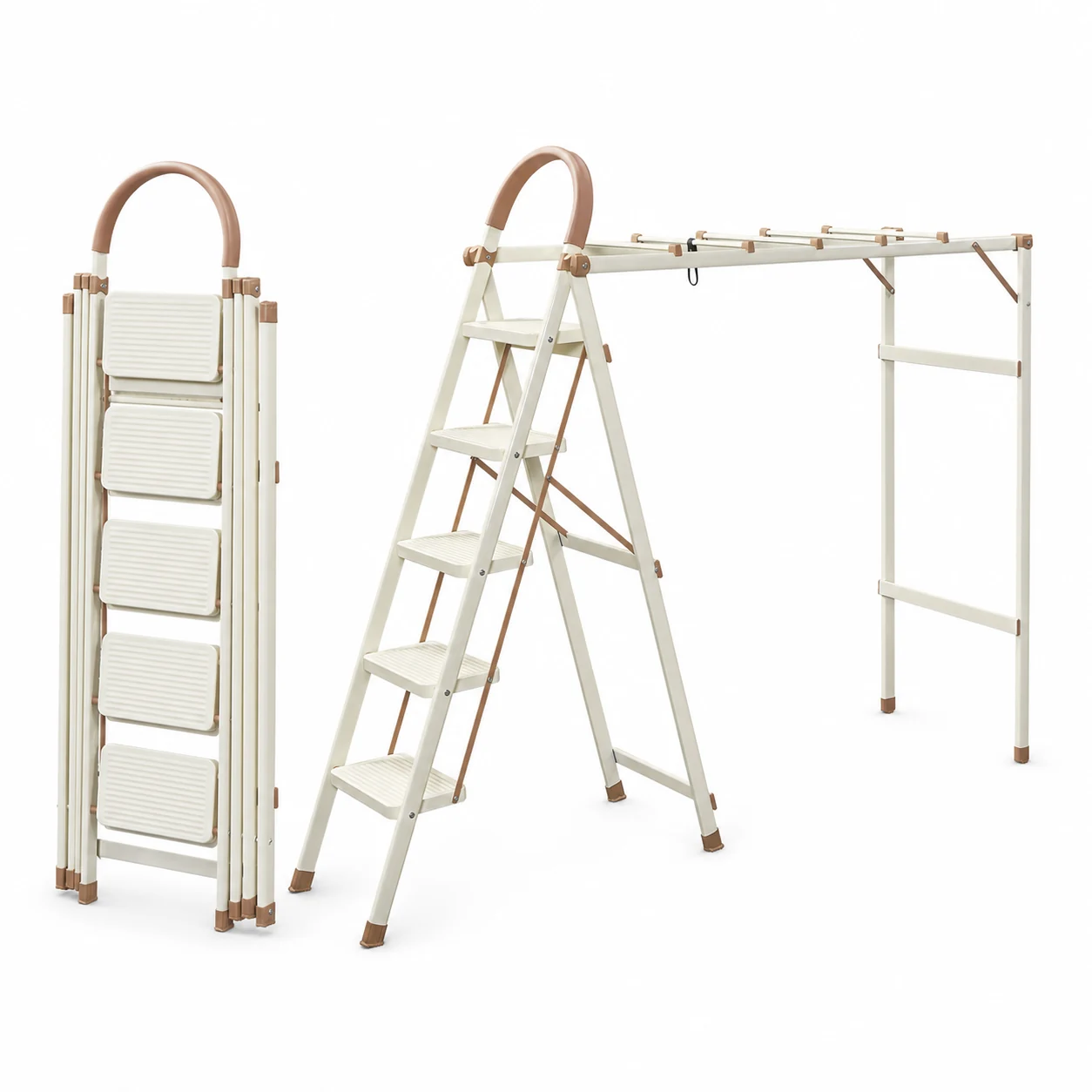

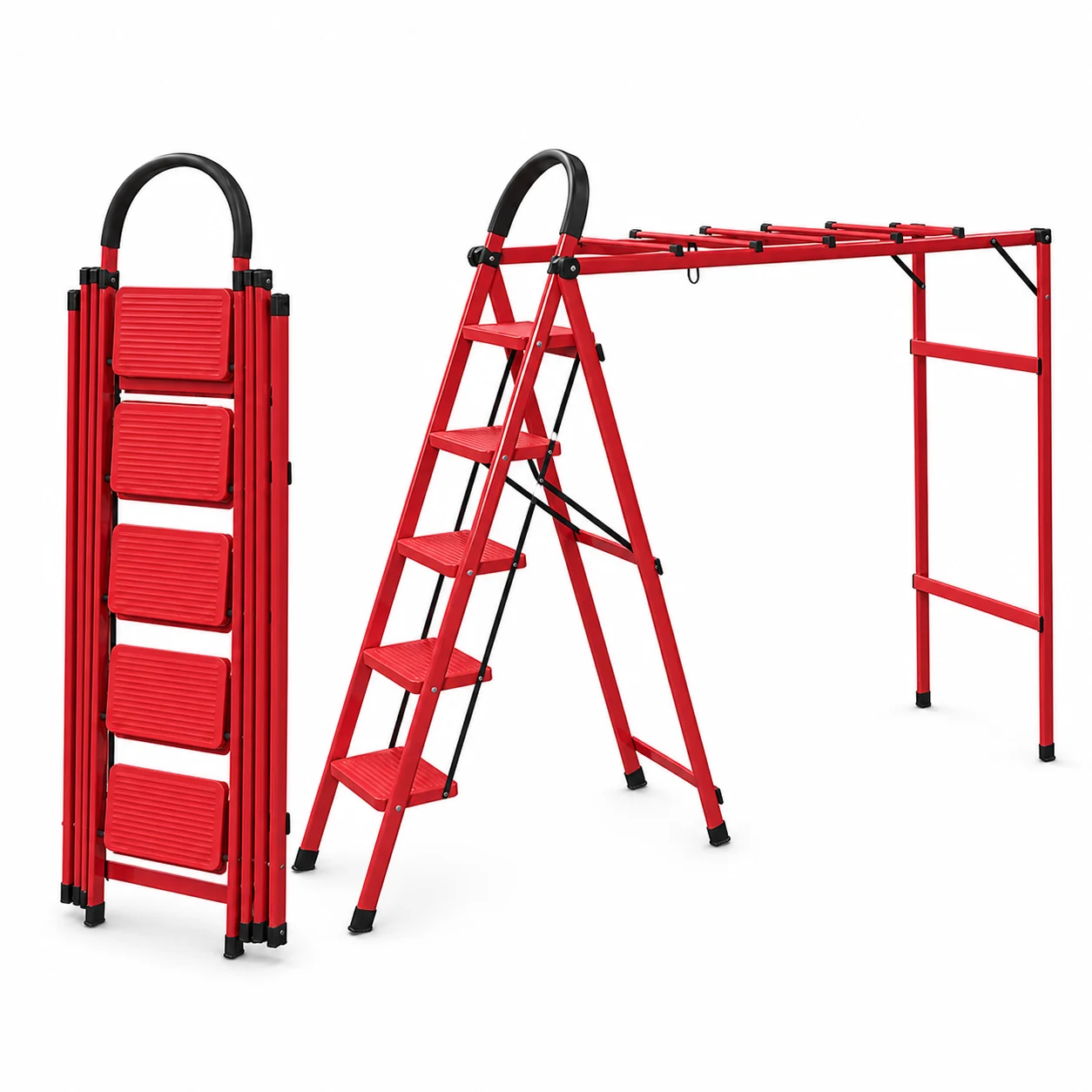

Each finish card shows the same five-step ARK16 in both storage and rack-expanded states, making product structure and coating easier to compare.
Confirm target coating reference, required step configuration, order quantity and destination market before sample production.
Dimensions & delivery
Five-Step Working Size and Packaging
The supplied five-step dimension image and series table provide the dimensional basis used below.
Ladder, Rack and Folded Profile

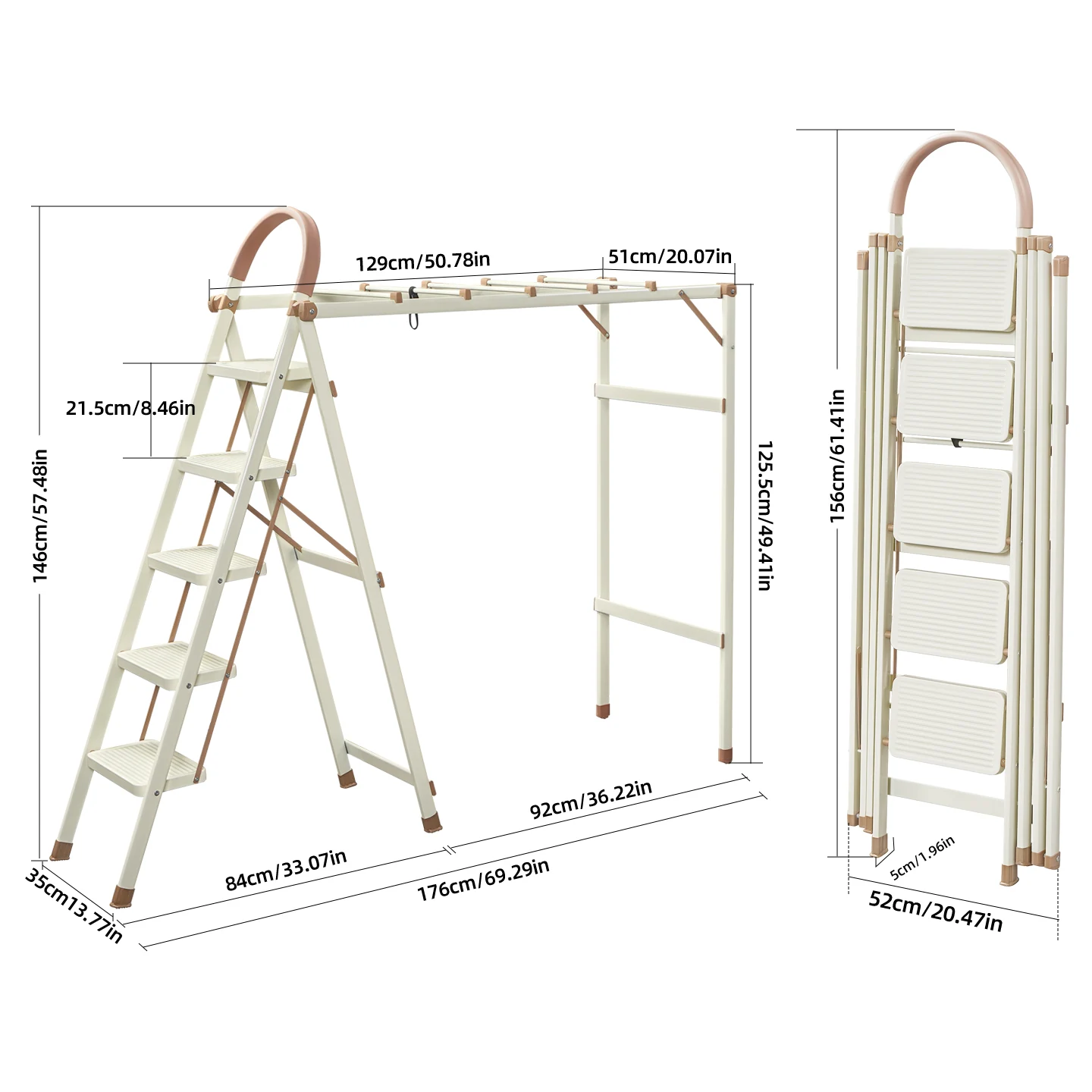

The supplied image shows an approximately 146 cm ladder height, 129 cm horizontal rack section, 176 cm combined floor length and a folded profile of approximately 156 × 52 × 5 cm. Final production drawing controls.
158 × 53.5 × 6.5 cm Carton

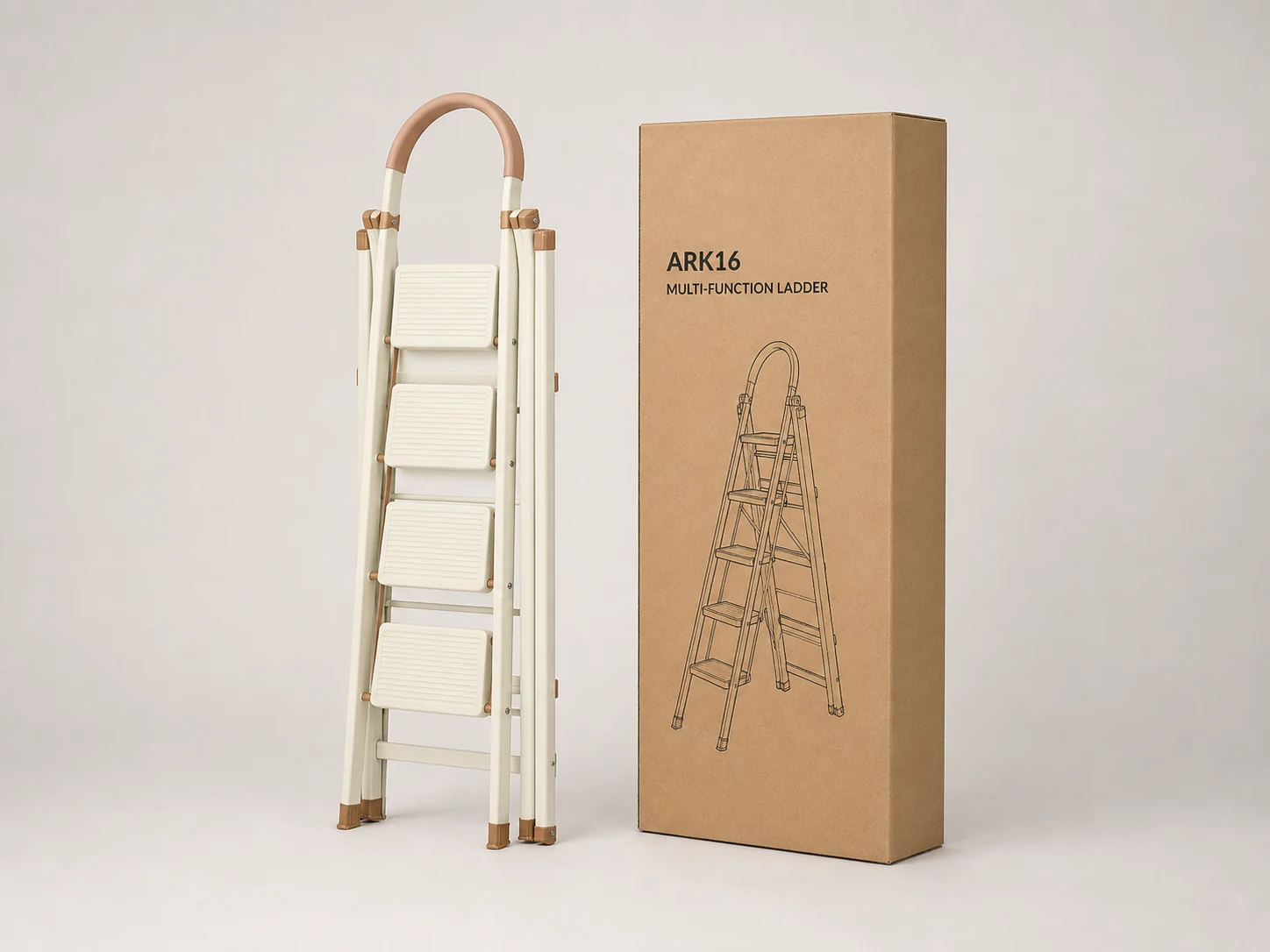

The visual presents the folded product with a slim kraft export carton. Final corrugated grade, internal protection, artwork and shipping marks are confirmed before production.
PACKAGING REFERENCE · FINAL ARTWORK TO BE CONFIRMED
Household utility application
More Utility Between Climbing Jobs

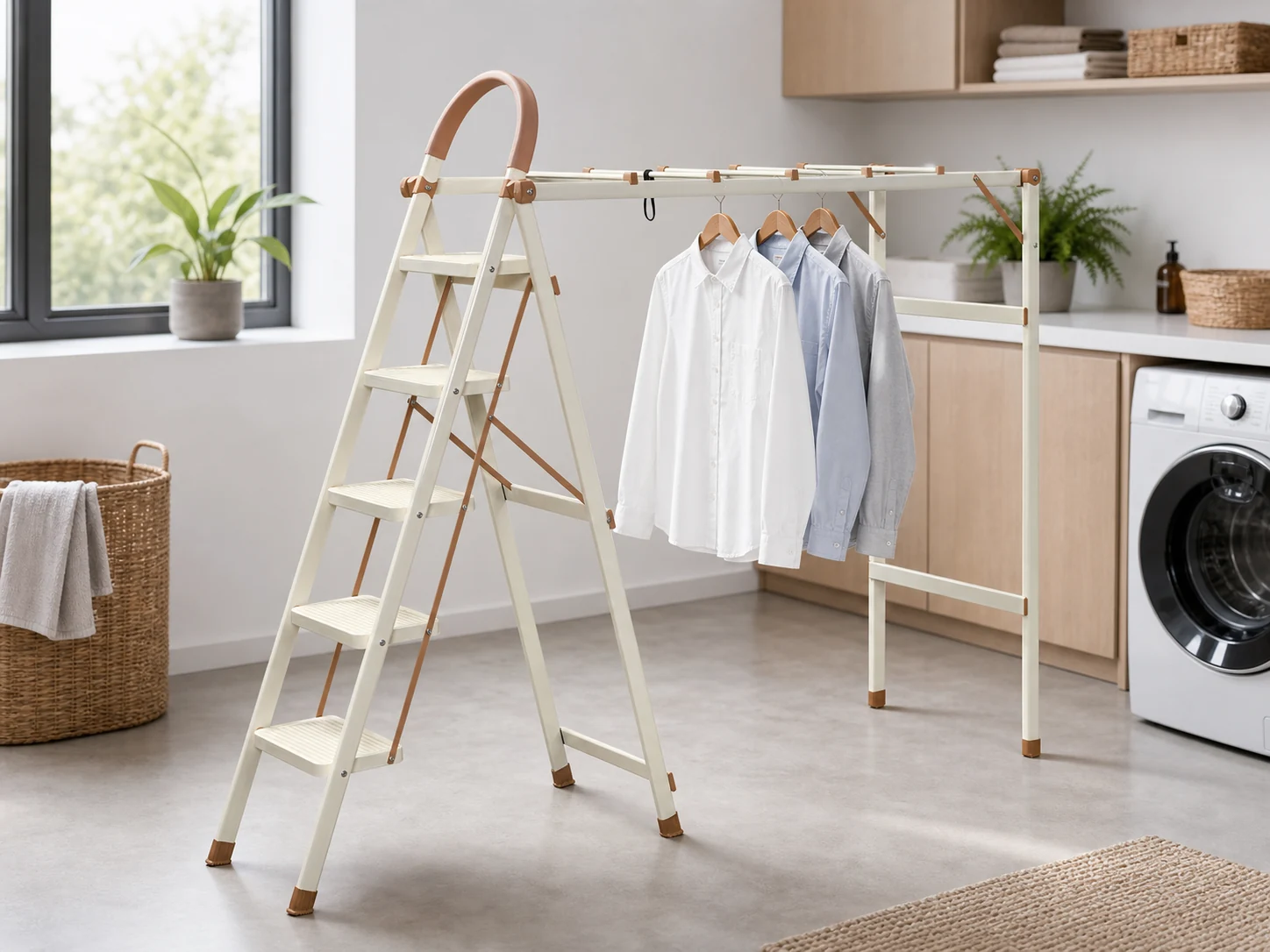

When the rack is extended, ARK16 can organize lightweight garments in a laundry or utility room. When the task is finished, the complete structure folds into one compact storage profile.
For wholesale buyers
Build Your ARK16 Program
Share the target channel so the factory can match step count, coating, packaging and destination-market requirements.
Suggested Channels
- Household-goods and home-improvement distributors
- Laundry, storage and utility product programs
- Online marketplace multifunction product ranges
- Private-label carbon-steel ladder programs
- Mixed-container household product sourcing
Details to Confirm
- Required step configuration and order quantity
- Target coating color and logo treatment
- Destination market and certification needs
- Permitted ladder and rack loads
- Retail carton, export carton and inspection schedule
Request an ARK16 Factory Quotation
Send the step count, target quantity, destination market, required color and packaging details. We will confirm the applicable specifications and commercial terms.
Buyer questions
ARK16 FAQ
Which step configurations are available?
The supplied ARK16 series specification covers 4-step, 5-step and 6-step configurations.
Which colors are currently shown?
The supplied series table lists red, black and ivory/cream for all three configurations.
Can the rack be used as a standing platform?
This page does not describe the pull-out rack as a standing platform. Its permitted load and intended use must be confirmed with the factory before quotation and buyer-facing labeling.
What is the ladder load capacity?
A verified load-capacity figure was not included in the supplied ARK16 data, so this page does not publish an unconfirmed number. Confirm the required rating and destination-market standard during quotation.
Can we customize the packaging?
Yes. Coating color, logo, carton artwork, shipping marks and protective packing can be discussed. The packaging image is a visual reference; final artwork and construction require order confirmation.
What changes by step count?
Weight, carton length, shipping volume, folded/open height, top-platform height and rack working dimensions vary across the 4-6 step range.
