ARK11F Carbon Steel Wide-Step Handrail Ladder
A 2-5 step household series with a tall horizontal top handrail, wide 30 × 20 cm ribbed treads and a slim 5.5 cm carton depth for wholesale, retail and private-label programs.
Select Step Configuration
Specifications update instantlyLoad rating, target-market certification, MOQ, tube specification and final packaging construction must be confirmed for the selected configuration before quotation.
Product construction
Tall Handrail, Wide-Step Household Reach

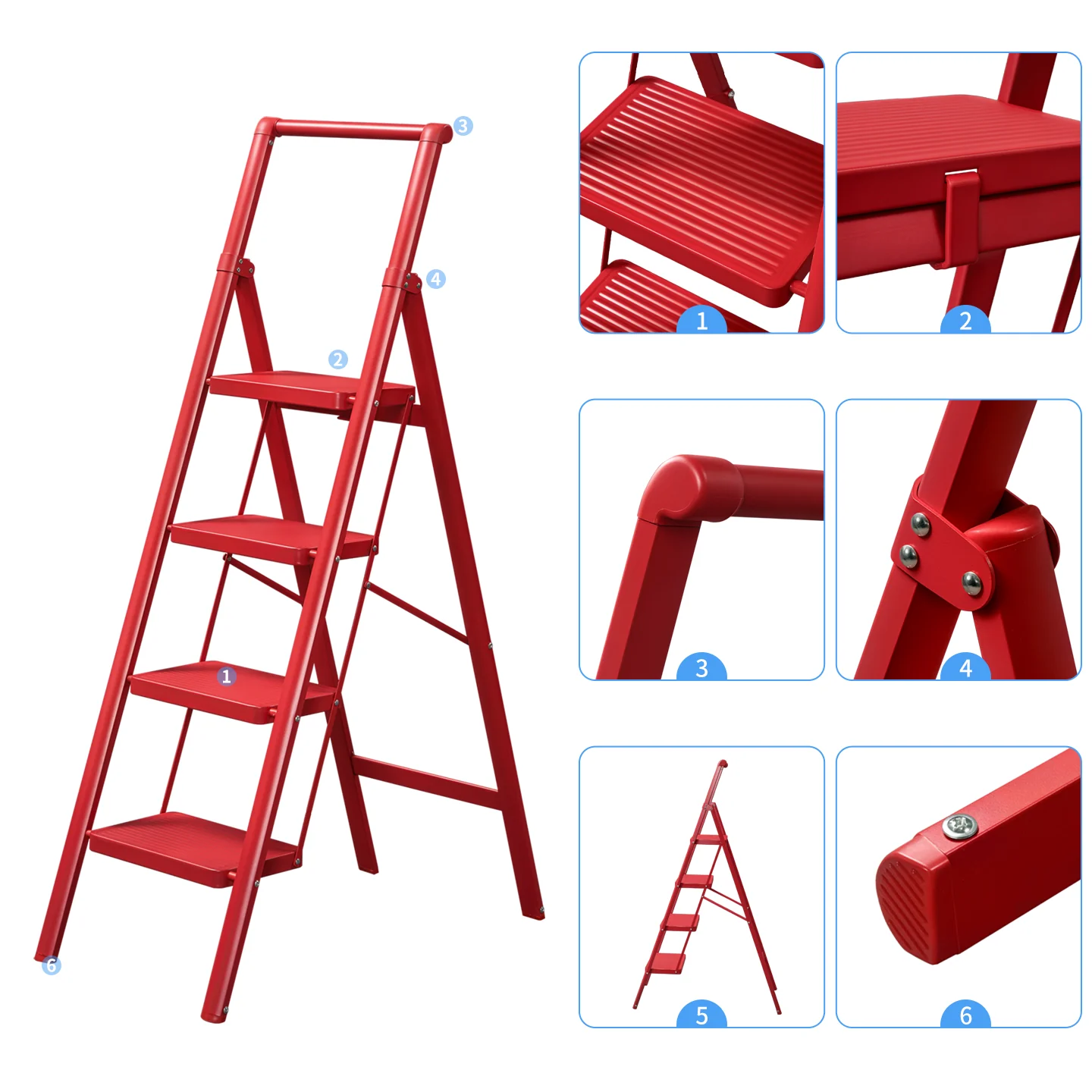

The supplied images show the exact buyer-facing details of the red four-step configuration.
30 × 20 cm tread boards provide a broad textured surface across the series.
Extended front uprights connect through one horizontal round grip bar above the top platform.
The supplied product uses the same distinctive handrail structure without a tool tray or padded grip.

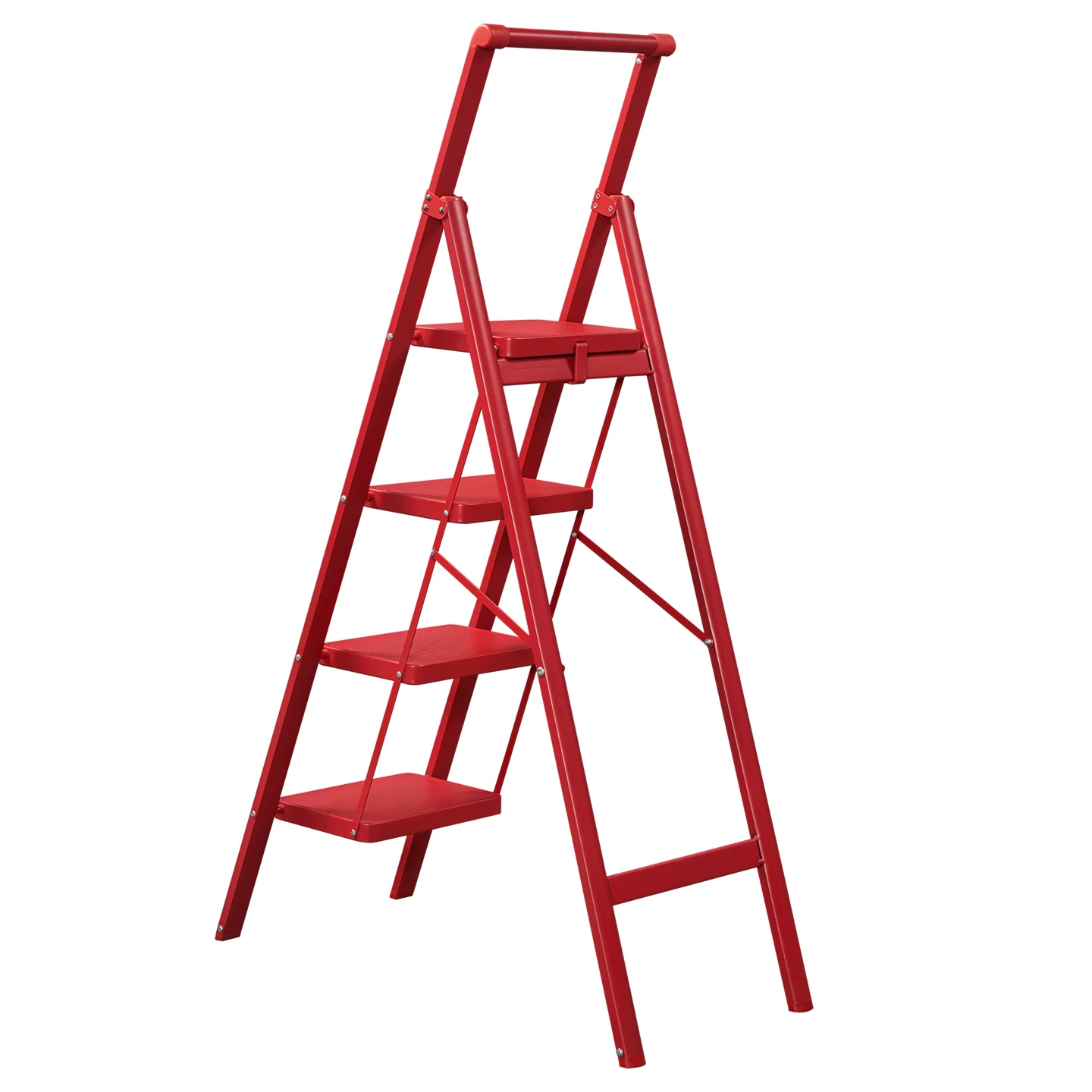

Side rods and rear braces connect the climbing side to the rear support frame.
The supplied outer-carton data maintains a slim 5.5 cm depth across all four configurations.
Carbon-steel rails and treads use a coordinated powder-coated finish with exposed silver fasteners.
Procurement data
ARK11F Series Specifications
Compare weight, carton size, shipping volume and platform height across the 2-5 step range.
| Configuration | Current Colors | Net Weight | Gross Weight | Carton Size | CBM | Load Qty | Folded / Open Height | Top Platform | Tread |
|---|---|---|---|---|---|---|---|---|---|
| 2 Step | Black | 3.3 kg | 3.7 kg | 94 × 43 × 5.5 cm | 0.017 | 3882 | 93 / 88 cm | 45 cm | 30 × 20 cm |
| 3 Step | Black / White / Red | 4.4 kg | 4.9 kg | 119 × 43 × 5.5 cm | 0.028 | 2357 | 118 / 112 cm | 69 cm | 30 × 20 cm |
| 4 Step | Black / White / Red | 5.35 kg | 6.05 kg | 144 × 43 × 5.5 cm | 0.034 | 1941 | 143 / 136 cm | 93 cm | 30 × 20 cm |
| 5 Step | Black / White / Red | 6.5 kg | 7.4 kg | 169 × 43 × 5.5 cm | 0.04 | 1650 | 168 / 159 cm | 116 cm | 30 × 20 cm |
Current color samples
One Product, Consistent Color Presentation

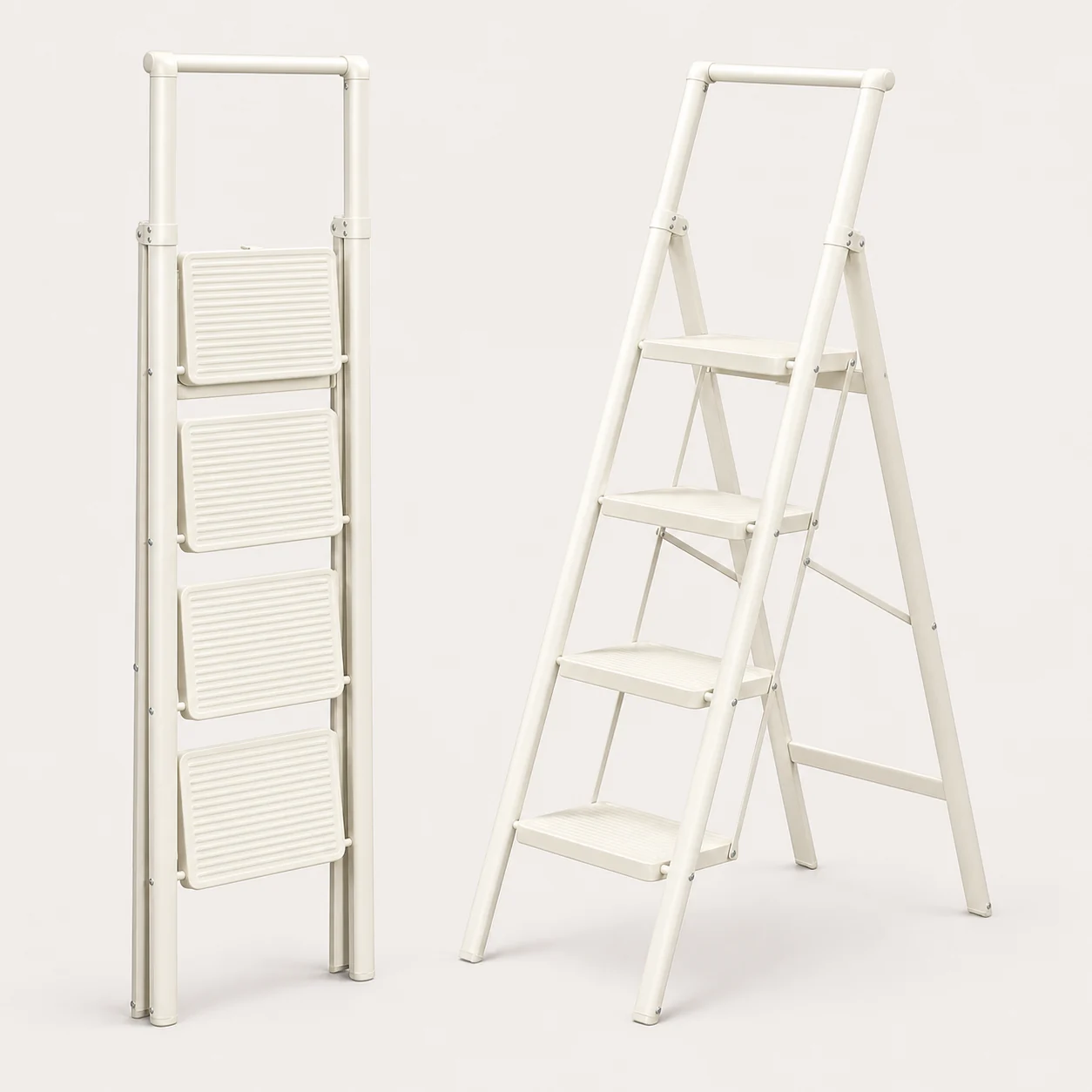

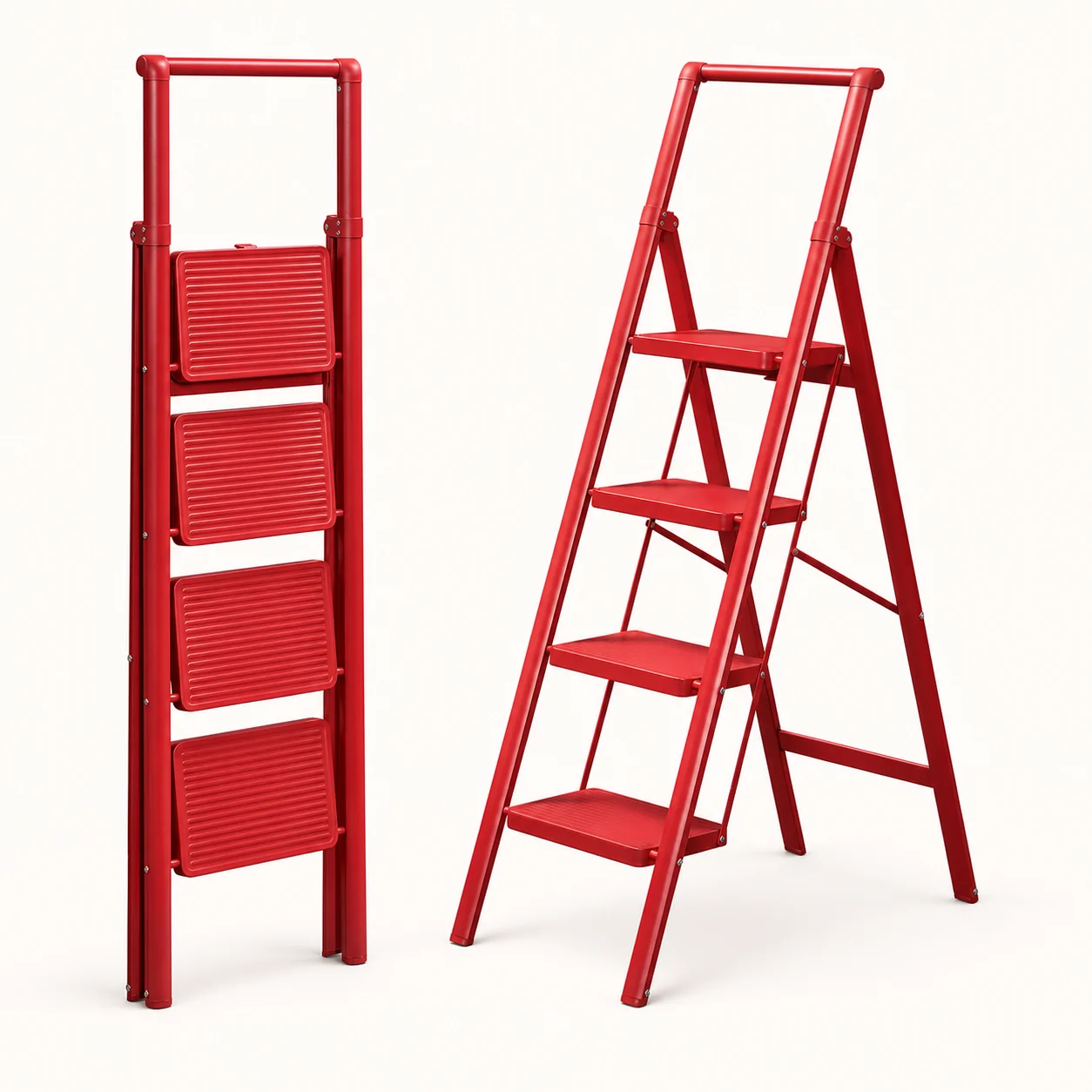

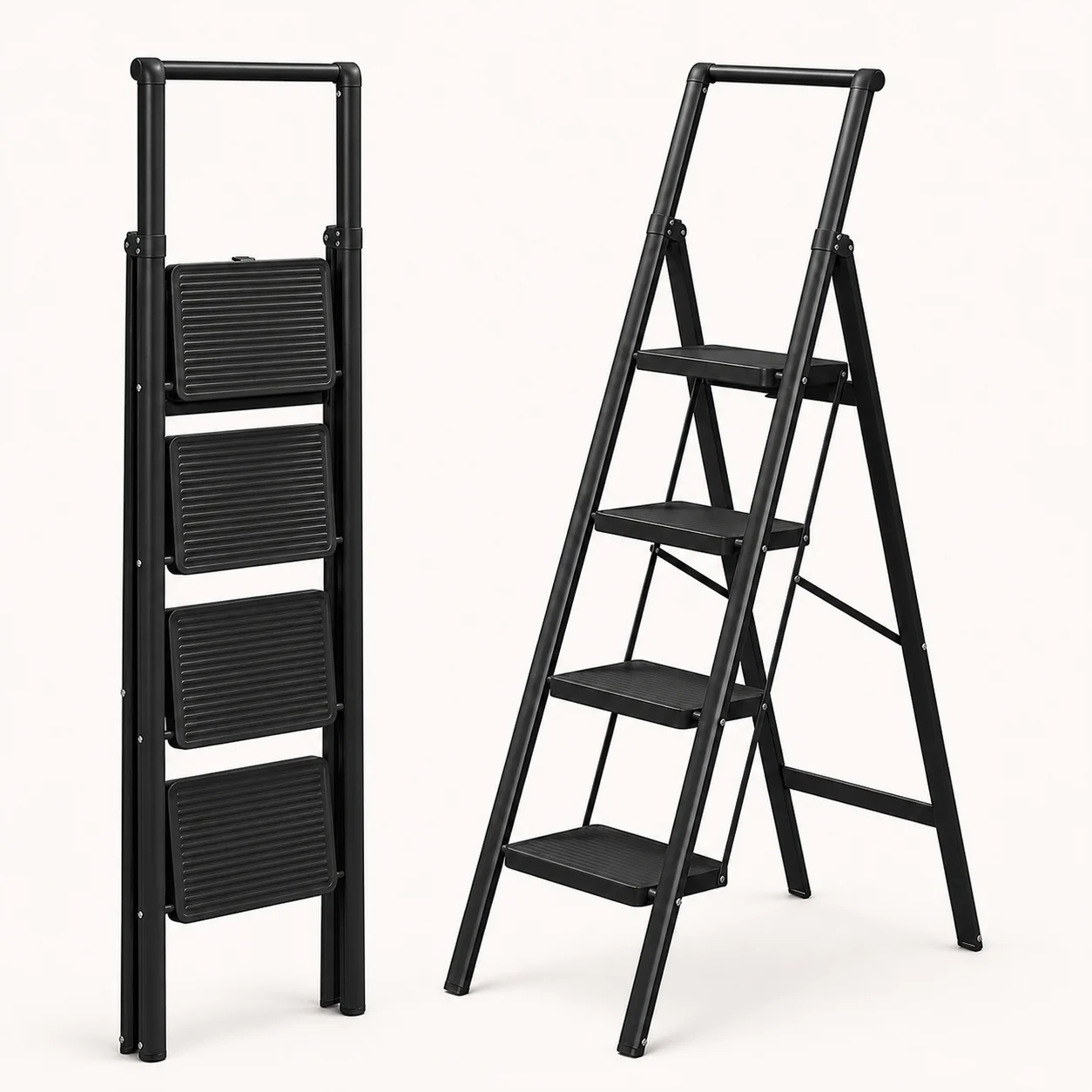

Black, ivory white and red four-step visuals use one controlled ARK11F handrail structure so buyers can compare finishes without product-shape inconsistencies.
Confirm target color reference, required configuration, order quantity and destination market before sample production.
Dimensions & delivery
Four-Step Size and Packaging Reference
The supplied four-step image and series table provide the dimensional basis used below.
Open and Folded Dimensions

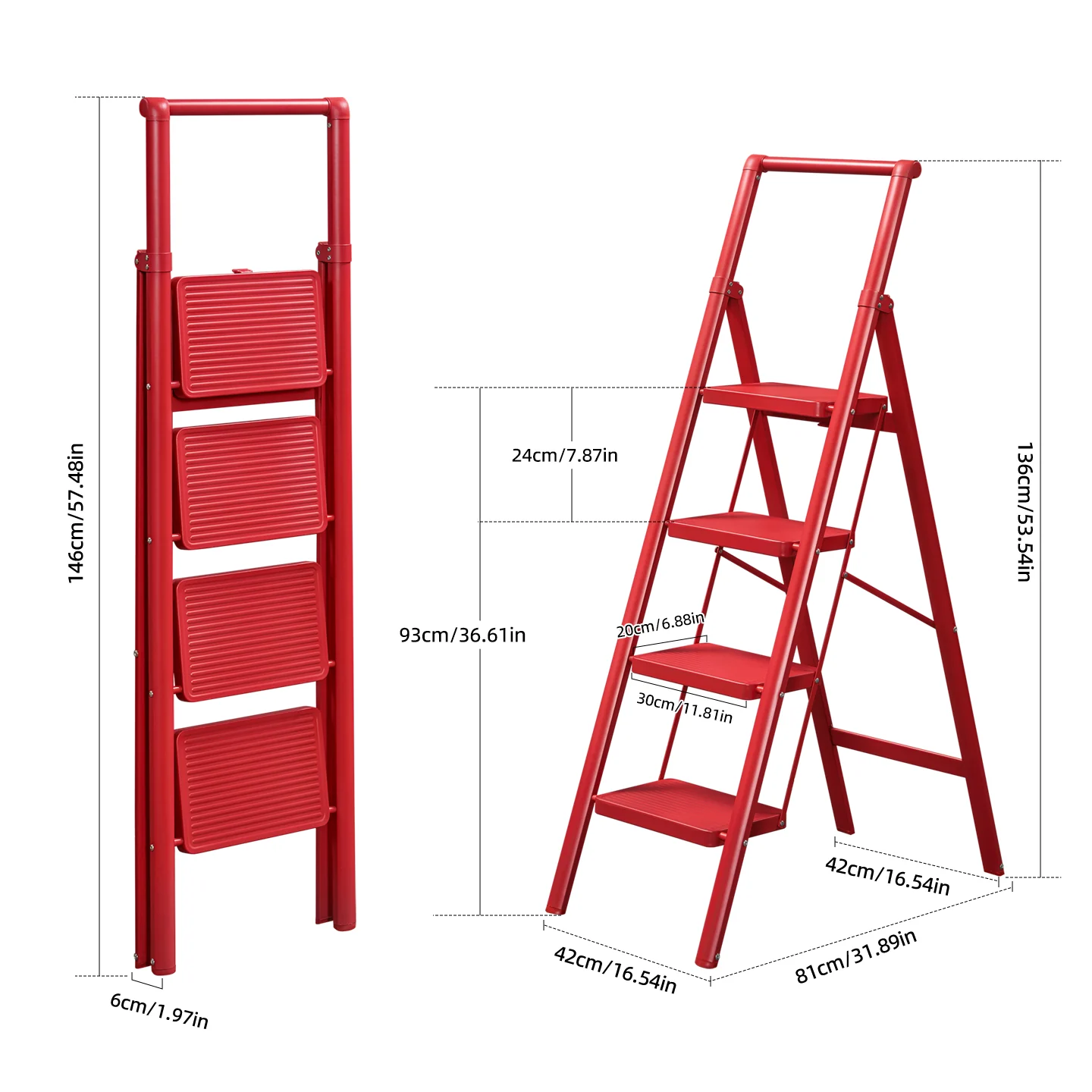

The supplied series table lists 143 cm folded height, 136 cm open height and 93 cm top-platform height for the four-step configuration. The supplied dimension image also shows a 42 cm width, 81 cm open depth and 6 cm folded product thickness; reconfirm the final drawing before production.

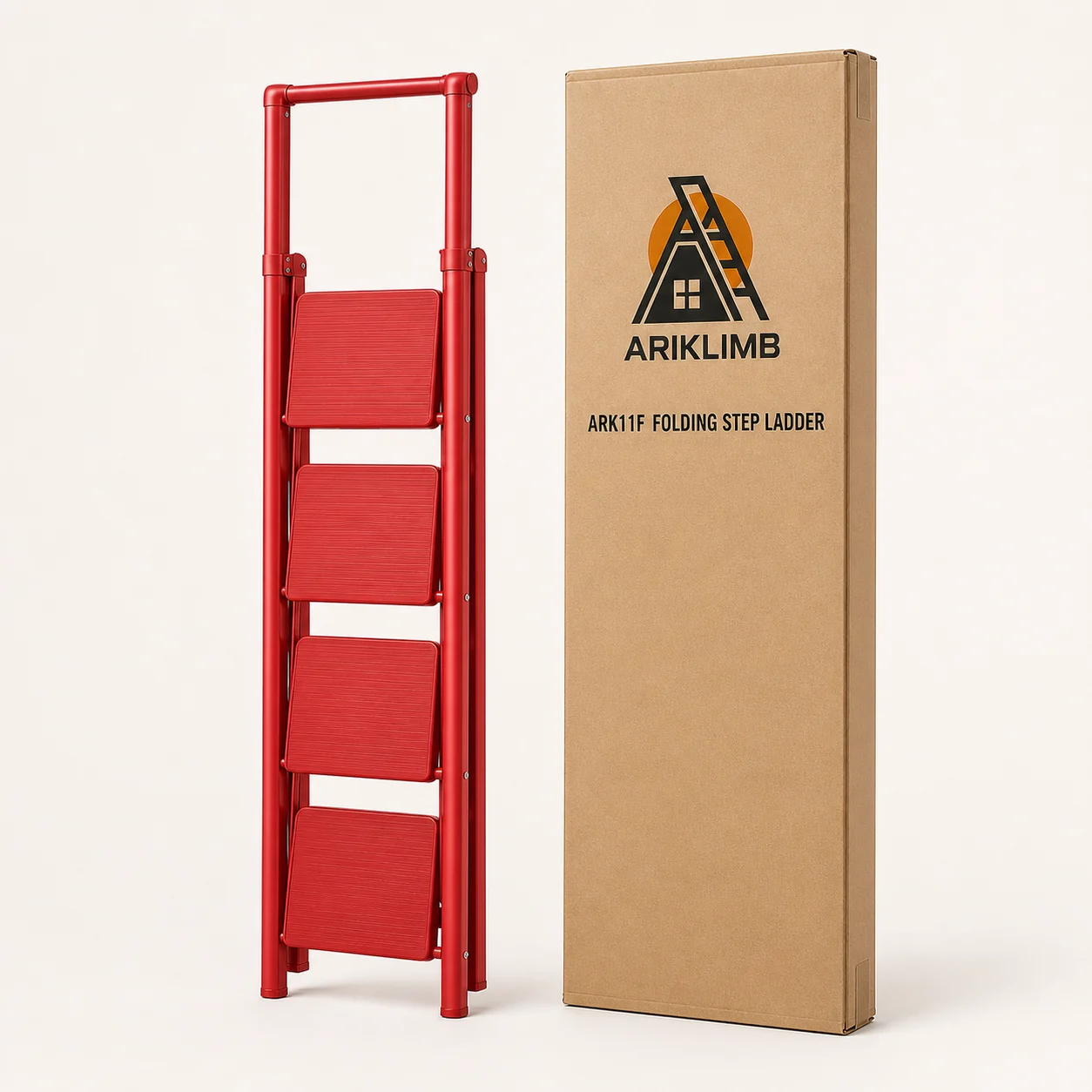

144 × 43 × 5.5 cm Carton
The visual uses the supplied four-step outer-carton dimensions. Final corrugated grade, protection, logo artwork and shipping marks are confirmed before production.
PACKAGING REFERENCE · FINAL ARTWORK TO BE CONFIRMED
Household application
Supported Reach for Everyday Storage

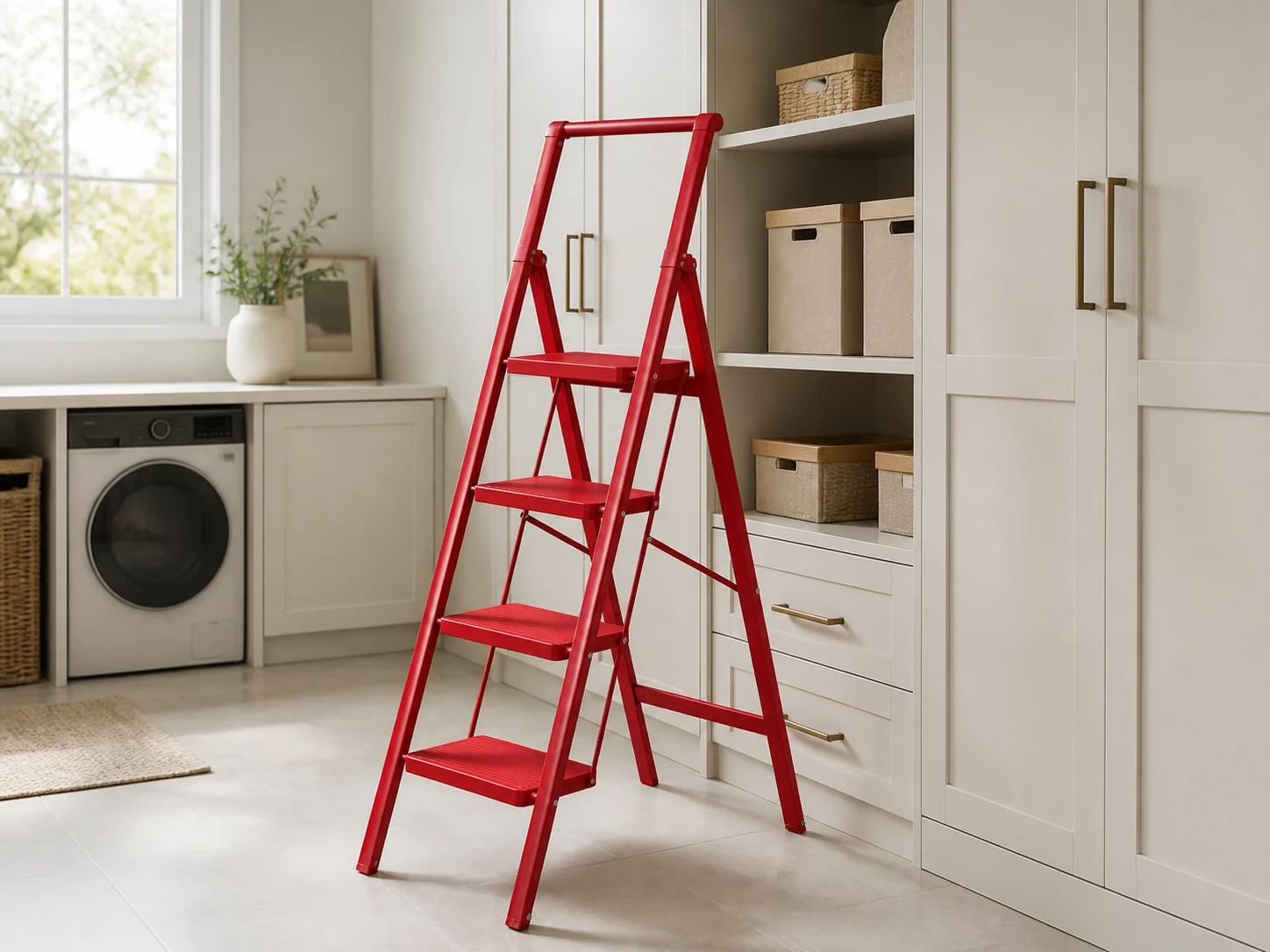

The broad tread boards, tall top handrail and folding A-frame position ARK11F for household storage, utility-room, home-improvement and online retail channels.
For wholesale buyers
Build Your ARK11F Program
Share the target channel so the factory can match step count, color, packaging and destination-market requirements.
Suggested Channels
- Household hardware and home-improvement distributors
- Supermarket and household-goods retail programs
- Online marketplace product ranges
- Private-label household handrail ladder programs
- Mixed-container household product sourcing
Details to Confirm
- Required step configuration and order quantity
- Target frame color and logo treatment
- Destination market and certification needs
- Retail carton or export-carton requirements
- Sample, production and inspection schedule
Request an ARK11F Factory Quotation
Send the step count, target quantity, destination market, required color and packaging details. We will confirm the applicable specifications and commercial terms.
Buyer questions
ARK11F FAQ
Which step configurations are available?
The supplied ARK11F series specification covers 2-step, 3-step, 4-step and 5-step configurations.
Which colors are shown in the supplied data?
The supplied table lists black for the 2-step model, and black, white and red for the 3-step, 4-step and 5-step models.
What is the load capacity?
A verified load-capacity figure was not included in the supplied ARK11F data, so this page does not publish an unconfirmed number. Confirm the required rating and target-market standard during quotation.
Can we customize the packaging?
Yes. Logo, carton artwork, shipping marks and protective packing can be discussed. The packaging image is a visual reference; final artwork and construction require order confirmation.
What changes by step count?
Weight, carton size, shipping volume, folded/open height and top-platform height vary across the range. The supplied tread size remains 30 × 20 cm and carton depth remains 5.5 cm.
Is ARK11F suitable for private label?
Private-label requirements such as color, logo and packaging can be evaluated against the required configuration, quantity and destination market.
