ARK01 Carbon Steel Household Step Ladder
A folding 2–8 step household ladder series with padded safety handrail, upper tool tray, wide anti-slip treads and customizable frame colors for wholesale and private-label programs.
Select Step Configuration
Specifications update instantlyLoad rating, target-market certification, MOQ, logo and final packaging artwork are confirmed according to the selected configuration and order requirements.
Product construction
Built for Practical Household Reach
The supplied product imagery shows the functional details buyers need to review before confirming samples.

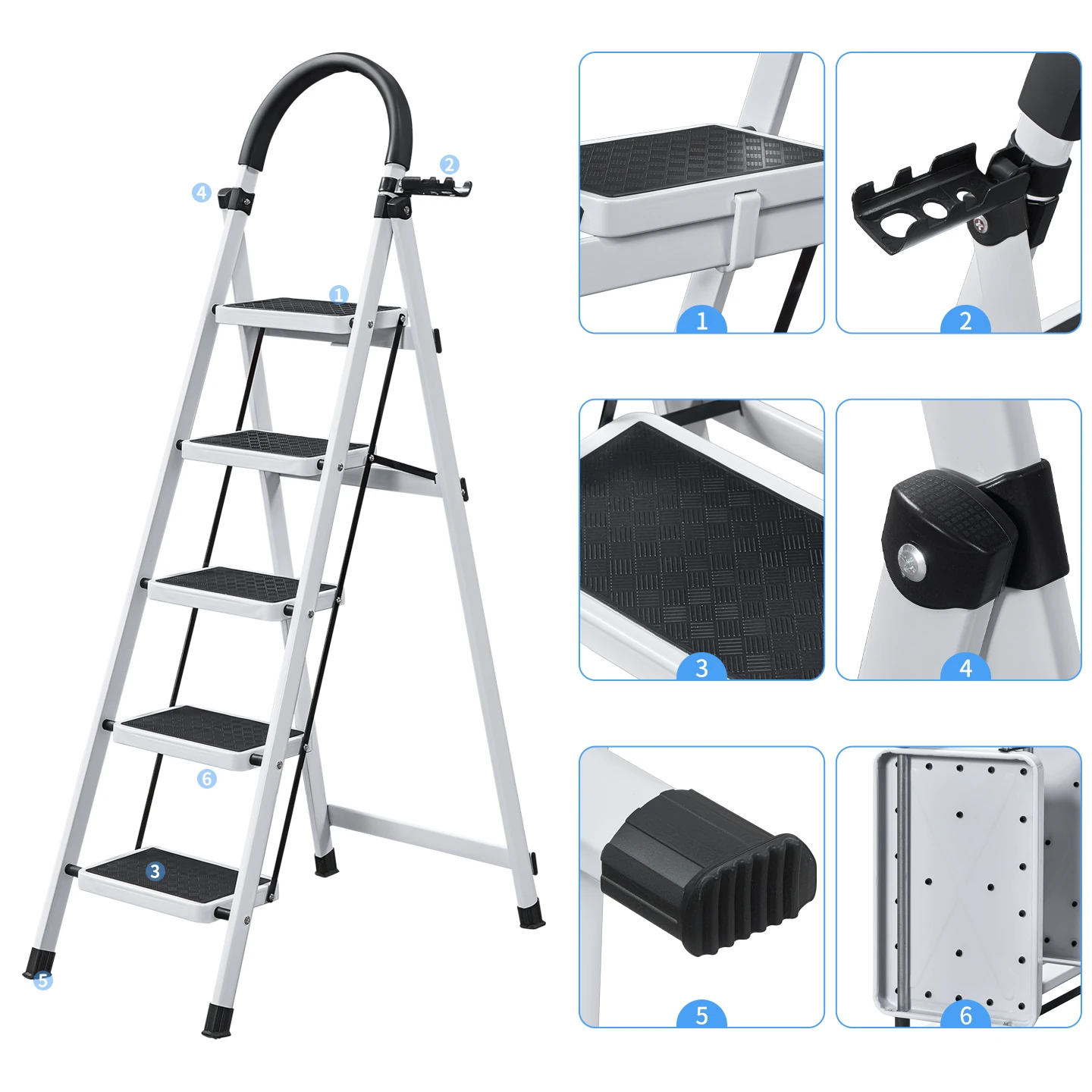

17 × 27 cm step boards with textured black standing surfaces.
Upper side holder keeps small tools and accessories within reach.
Curved black handrail provides a comfortable support position.
Black joint covers and fasteners complete the folding structure.
Black foot caps improve contact with common household floors.
Side rods, rear braces and step connections stabilize the open ladder.
Procurement data
ARK01 Series Specifications
Use the table to compare weight, packing size and working height across the 2–8 step range.
| Configuration | Current Colors | Net Weight | Gross Weight | Carton Size | Folded / Open Height | Top Platform Height | Step Board |
|---|---|---|---|---|---|---|---|
| 2 Step | Black / Red | 2.5 kg | 2.95 kg | 85 × 44 × 5 cm | 85 / 78 cm | 43 cm | 17 × 27 cm |
| 3 Step | Black / Red | 3.3 kg | 3.8 kg | 100 × 44 × 5 cm | 99 / 90 cm | 58 cm | 17 × 27 cm |
| 4 Step | Black / White / Red | 4.25 kg | 4.95 kg | 126 × 45 × 5 cm | 126 / 118 cm | 79 cm | 17 × 27 cm |
| 5 Step | Black / White / Red | 5.1 kg | 5.9 kg | 148 × 47 × 5 cm | 147 / 139 cm | 100 cm | 17 × 27 cm |
| 6 Step | Black / White / Red | 5.95 kg | 6.75 kg | 170 × 48 × 5 cm | 169 / 159 cm | 120 cm | 17 × 27 cm |
| Reinforced 7 Step | Red | 7.8 kg | 8.8 kg | 191 × 50 × 5.5 cm | 191 / 181 cm | 142 cm | 17 × 27 cm |
| Reinforced 8 Step | Confirm / Custom | 8.5 kg | 9.7 kg | 213 × 52 × 6 cm | 213 / 203 cm | 162 cm | 17 × 27 cm |

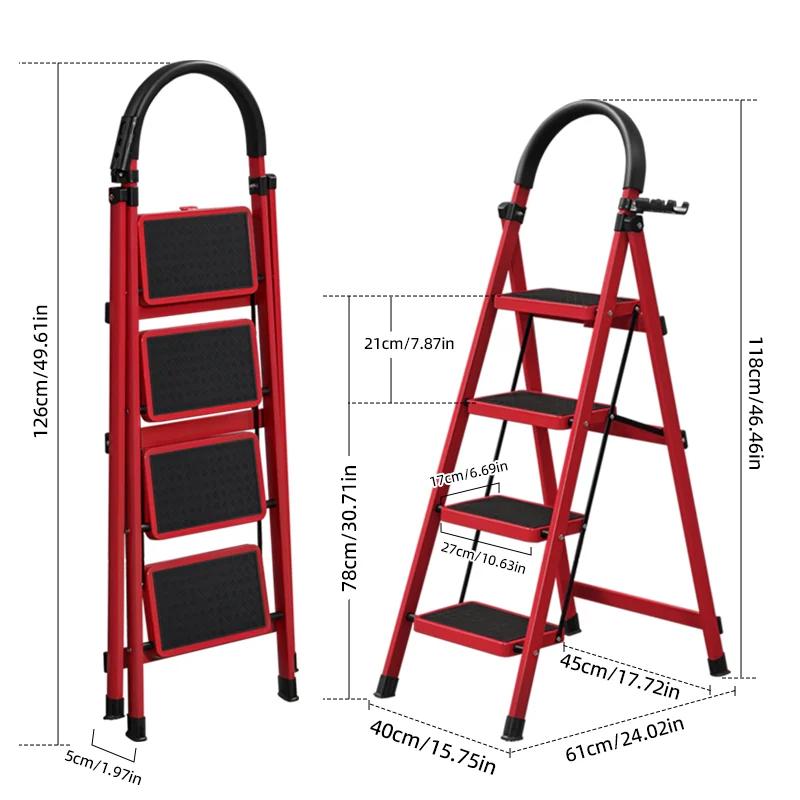

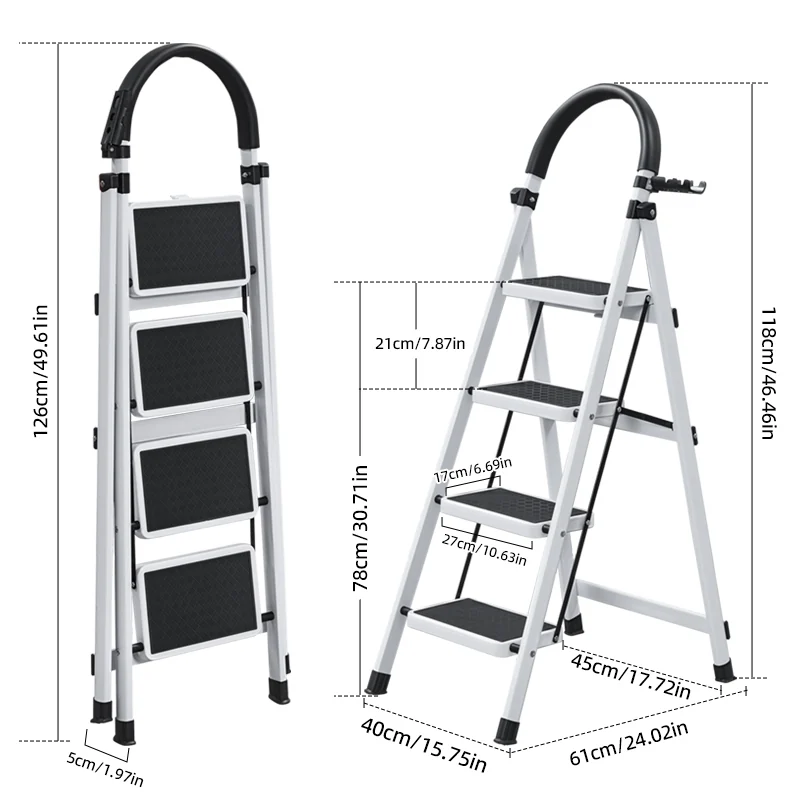

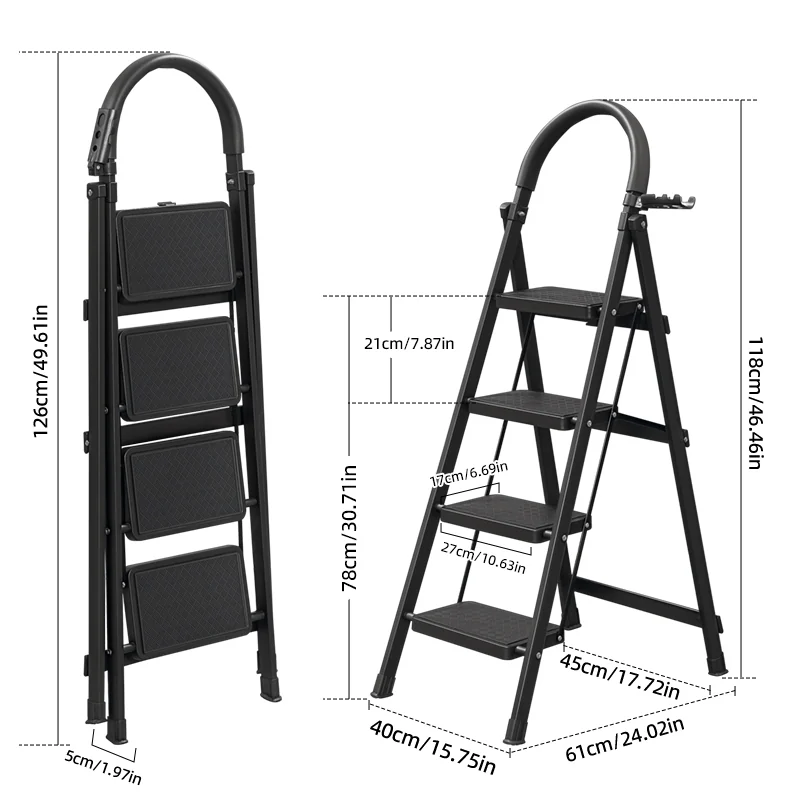

OEM color program
Current Samples & Custom Colors
Black, white and red are shown in the supplied ARK01 imagery. Project-specific frame colors can be discussed.
Confirm the target color reference, order quantity, logo treatment and packaging requirements before sample production.
Dimensions & delivery
Product Size and Packaging
The five-step size image is based on supplied product material; the carton visual uses the supplied 132 × 31 × 21 cm packaging reference.

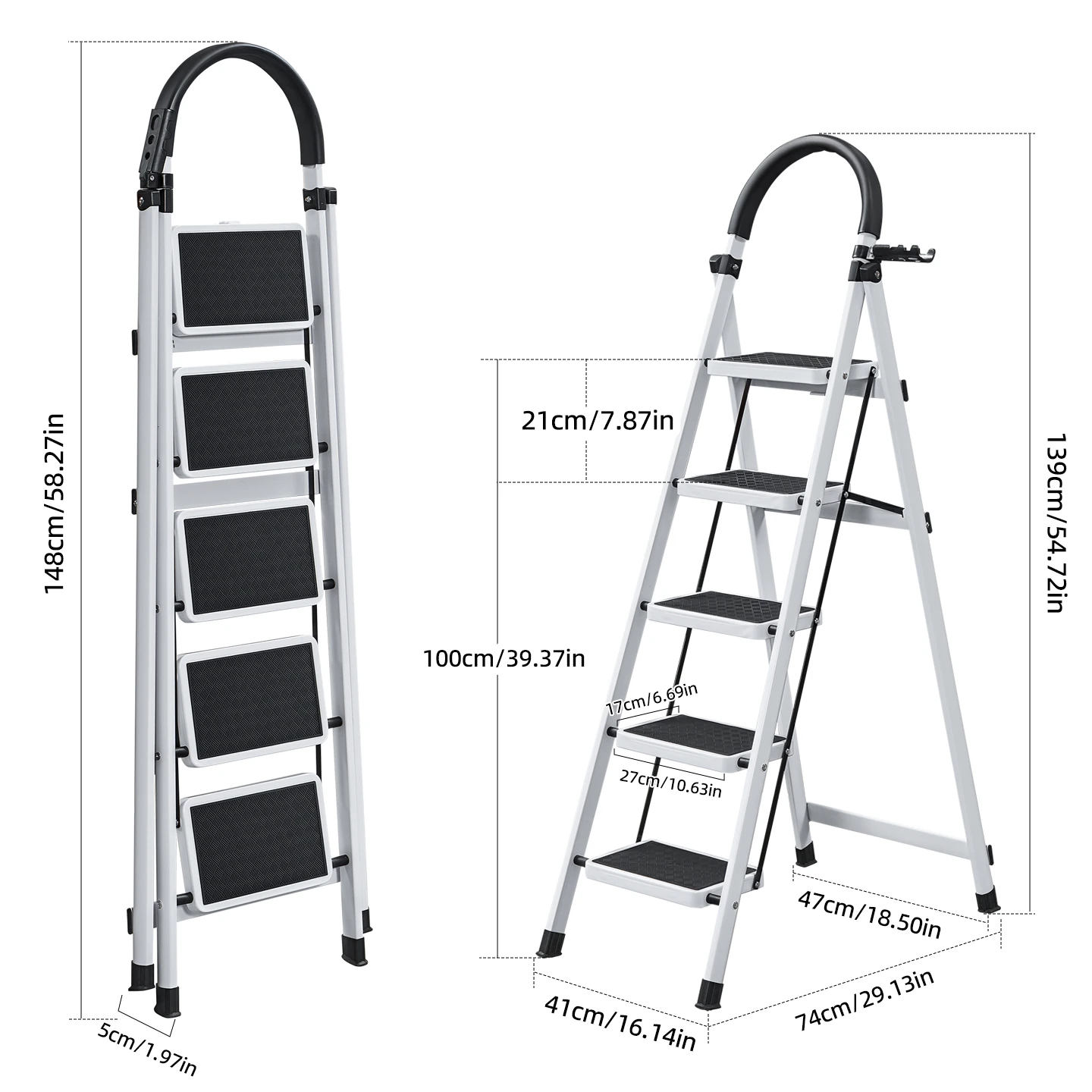

Open and Folded Dimensions
Five-step reference: 148 cm folded height, 139 cm open height, 100 cm top platform, 74 cm open depth and 5 cm folded depth.

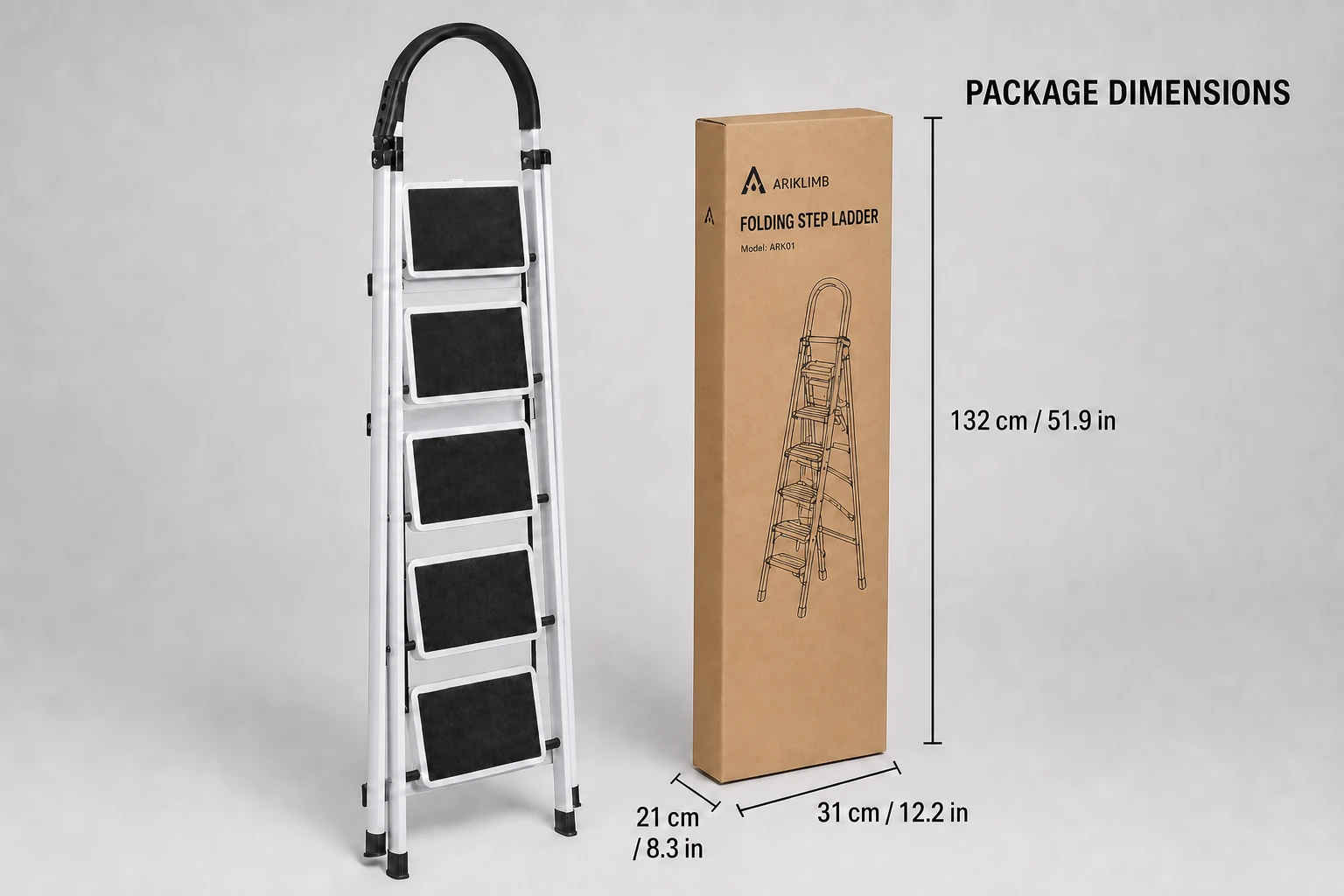

132 × 31 × 21 cm Carton
The approved visual shows a sealed upright kraft carton beside the folded product. Final logo artwork, protection method and shipping marks are confirmed before production.
PACKAGING REFERENCE — FINAL ARTWORK TO BE CONFIRMED

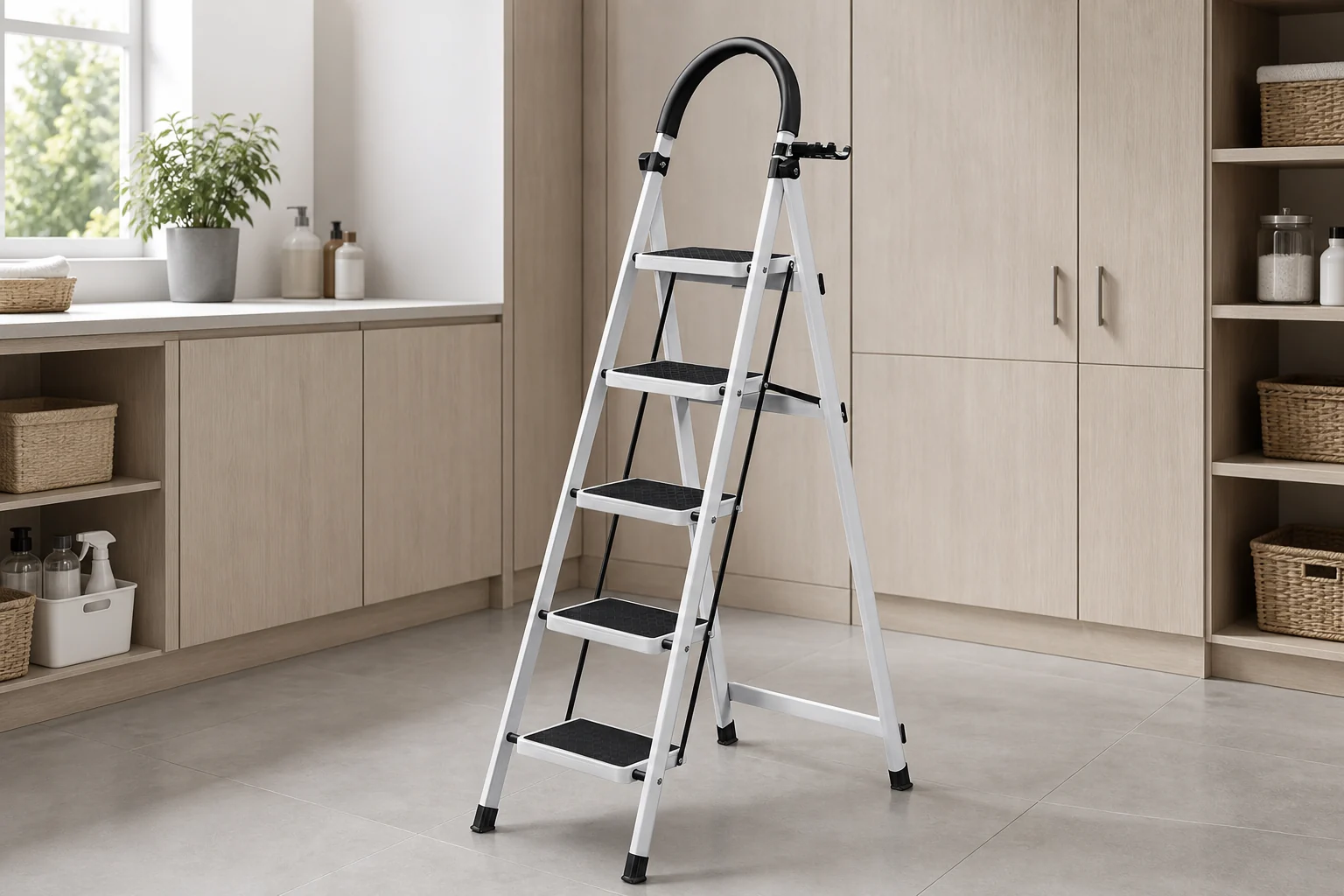

Household application
Stable Reach for Everyday Storage Tasks
The folding frame, padded handrail, wide treads and compact folded profile position ARK01 for household storage, utility-room and home-improvement channels.
For wholesale buyers
Build Your ARK01 Program
Share the target market and channel so the factory can match step count, color, packaging and compliance requirements.
Suggested Channels
- Household hardware distributors
- Home-improvement and household-goods retail
- Online marketplace product ranges
- Private-label ladder programs
- Mixed-container household product sourcing
Details to Confirm
- Required step configuration and quantity
- Target frame color and logo treatment
- Destination market and certification needs
- Retail carton or export-carton artwork
- Sample, production and inspection schedule
Request an ARK01 Factory Quotation
Send the step count, target quantity, destination market, required color and packaging details. We will confirm the applicable specifications and commercial terms.
Buyer questions
ARK01 FAQ
Which step configurations are available?
The supplied ARK01 series specification covers 2-step, 3-step, 4-step, 5-step, 6-step, reinforced 7-step and reinforced 8-step configurations.
Can the frame color be customized?
Yes. The ARK01 carbon-steel series supports custom frame colors. Current supplied samples show black, white and red; availability varies by step count and order requirements.
What is the load capacity?
A load-capacity figure was not included in the supplied ARK01 specification sheet, so this page does not publish an unverified number. Confirm the required rating and target-market standard during quotation.
Can we customize the packaging?
Yes. Logo, carton artwork, shipping marks and protective packing can be discussed. The packaging image on this page is a visual concept; final artwork and construction require order confirmation.
Which dimensions change by step count?
Net and gross weight, carton size, folded/open height and top-platform height vary across the range. The step board remains listed as 17 × 27 cm.
Is ARK01 available for private label?
Private-label requirements such as color, logo and packaging can be evaluated against the required configuration, quantity and destination market.
